Install PC Hardware(Auditcon 2 Series Key Reader)

Question

How to install PC Hardware (Auditcon 2 Series Key Reader)?

Answer

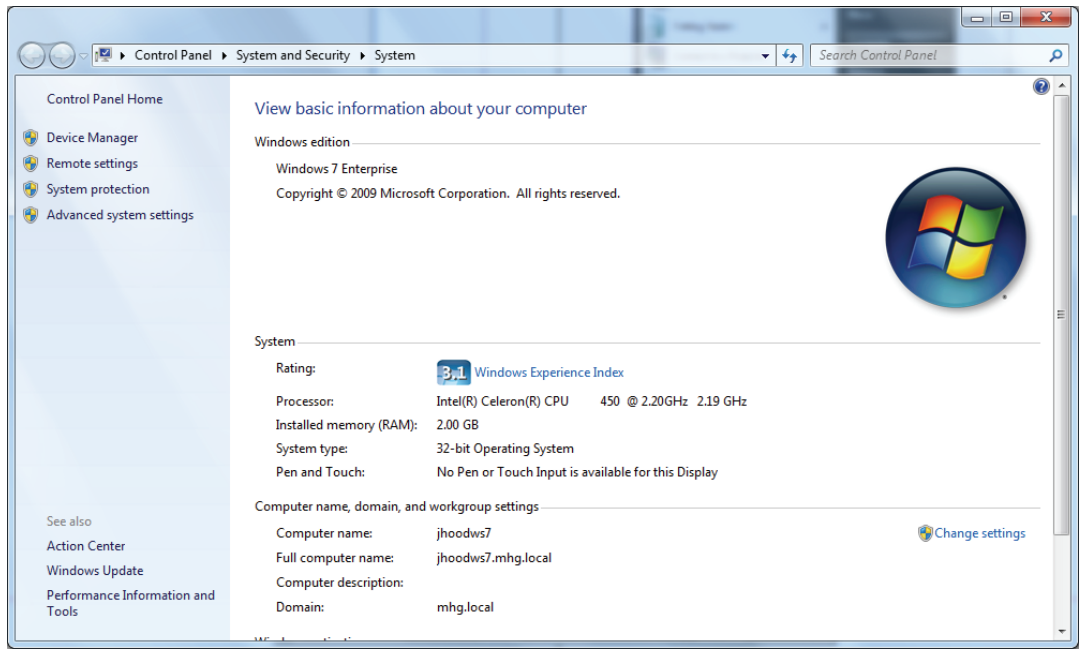

Note: A USB Adapter has been included with your implementation kit. In order to install the appropriate 1-wire driver, you must know if your system is configured as a 32-bit operating system or 64-bit. If you do not know, check your Computer’s Properties. The information can be found under System Type.

Complete the following steps to install the Auditcon 2 Series Key Reader:

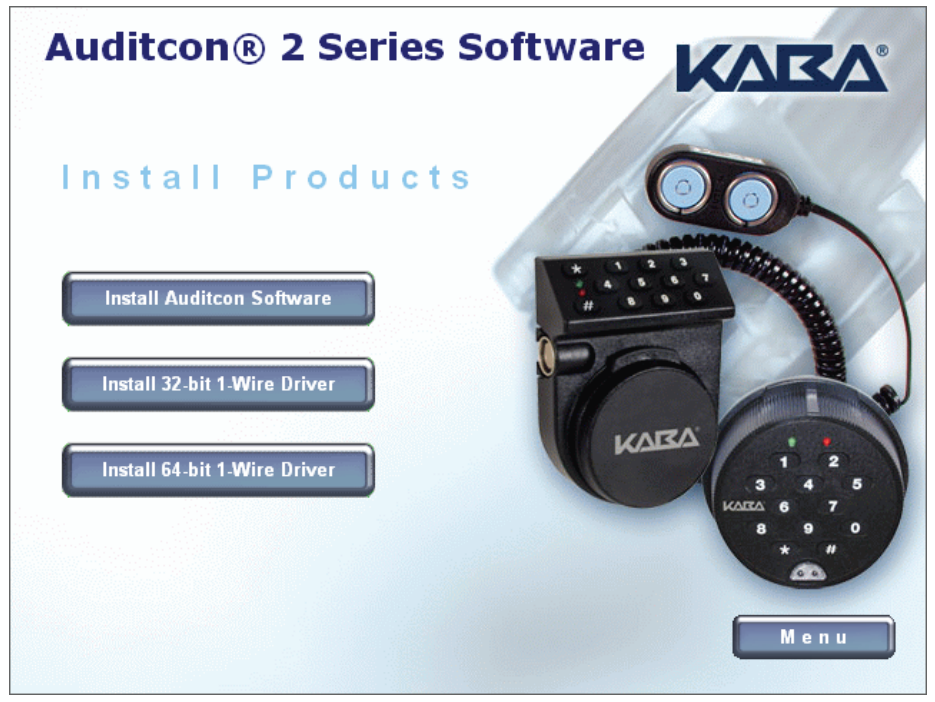

1. Click on the appropriate selection bar (32-bit or 64-bit) to install the 1-Wire Driver for your operating system configuration.

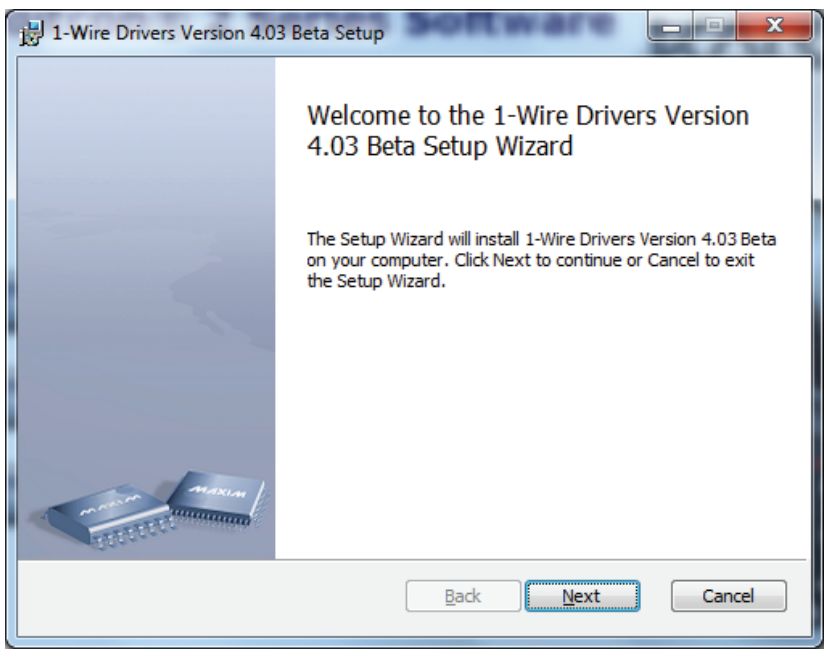

   The 1-Wire Drivers Setup screen is displayed.



2. Click on Next to to continue.

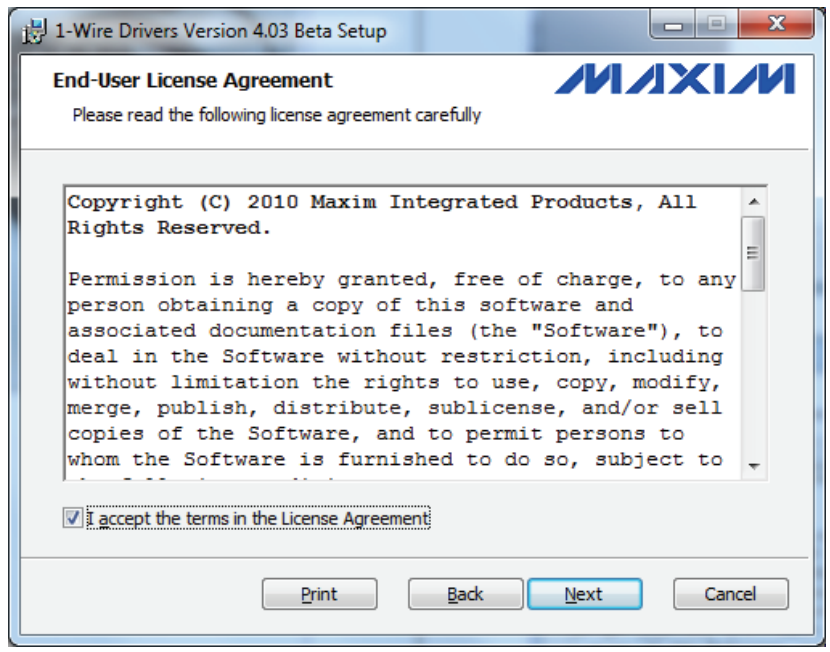

   The Maxim License Agreement screen is displayed.

3. Read the Maxim End-User License Agreement and then click on the box to indicate that you “accept the terms in the license agreement.”



4. Click on Next to continue.

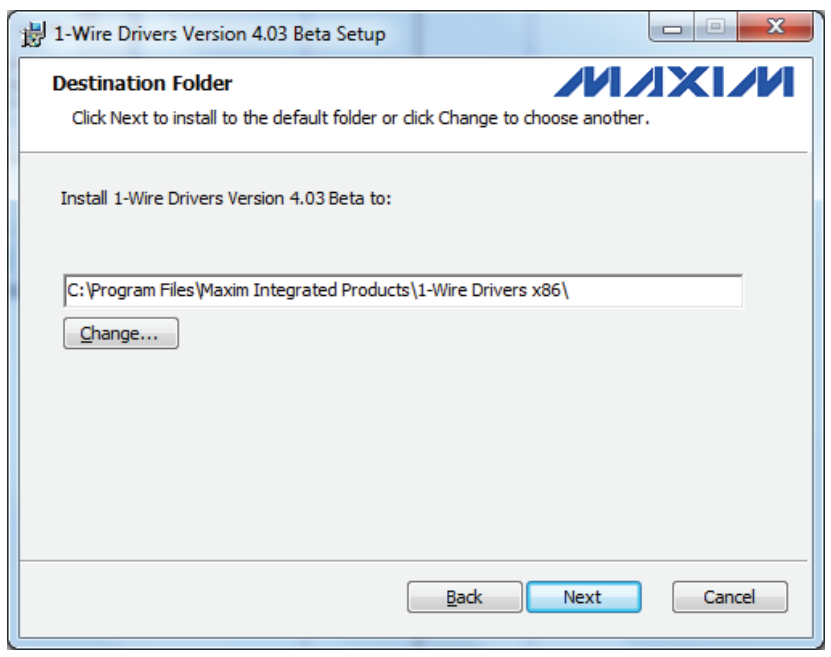

   The Destination Folder window will be displayed to allow you to select the program folder to which the 1-Wire Driver will be added.



   Note: The default installation directory is shown. If you want the 1-Wire Driver installed in another directory, click on the Change button and select the new path.

5. Click on Next to add the driver to the designated folder.

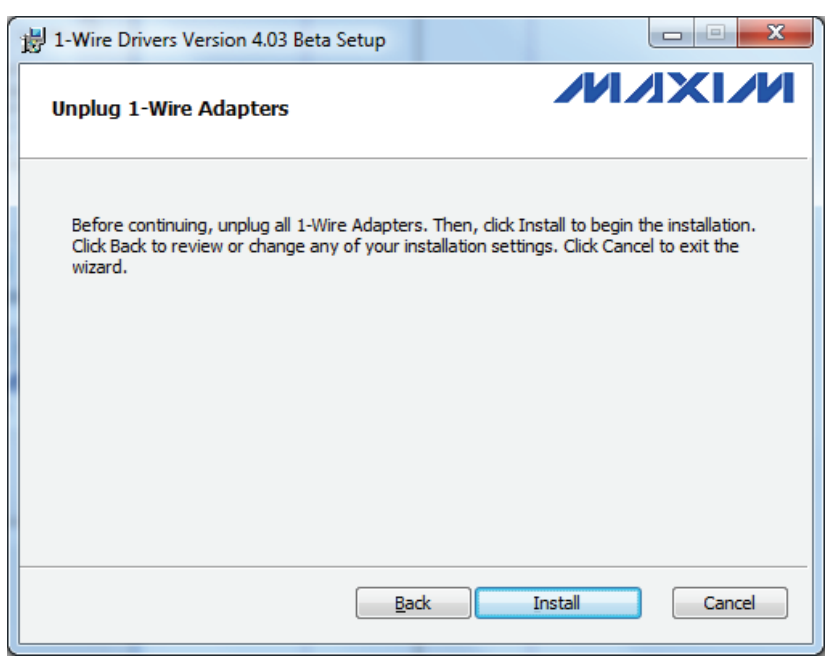

   The Unplug 1-Wire Adapters screen will be displayed to instruct you to unplug all 1-Wire adapters before continuing.



6. If you wish to change any of your installation settings, click on the Back button. Otherwise, click on the Install button to install the driver with the designated settings.

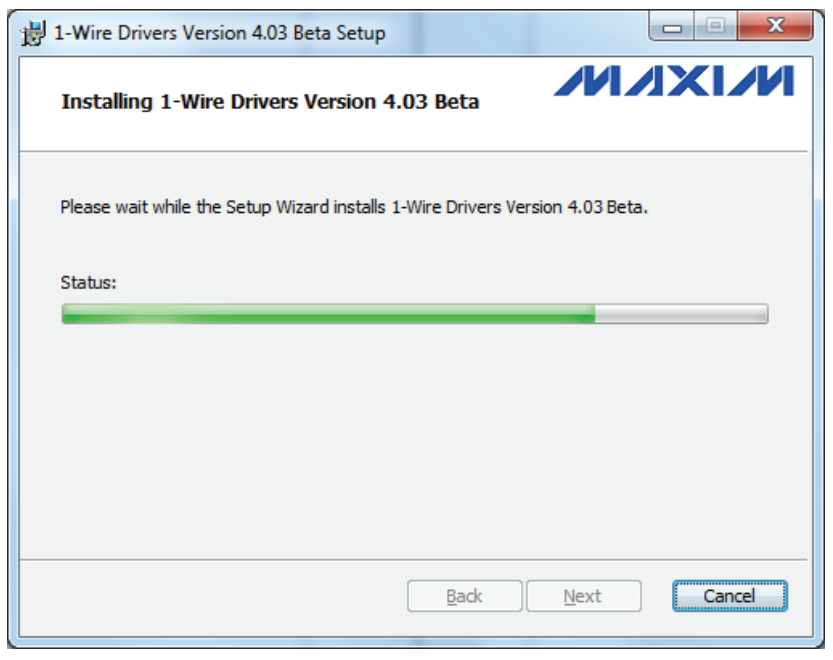

   The Setup Status screen is displayed and will show several different status messages as the installation progresses.

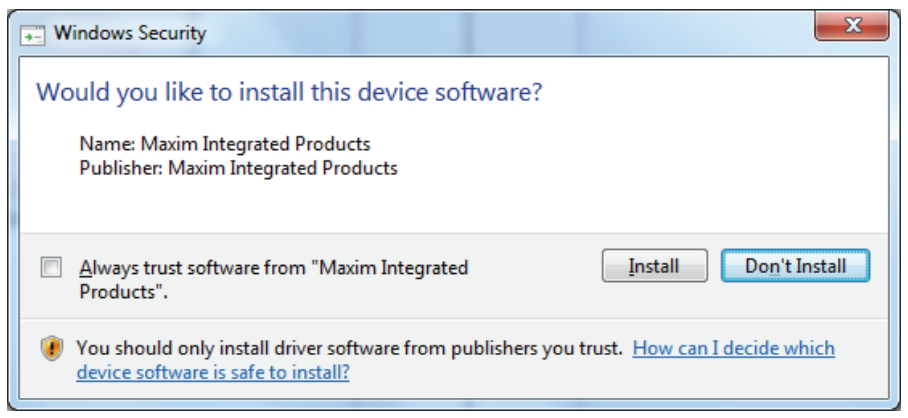

   The Windows Security screen may be displayed depending on your current system settings. If so, click on the Install button to accept install of the device software.

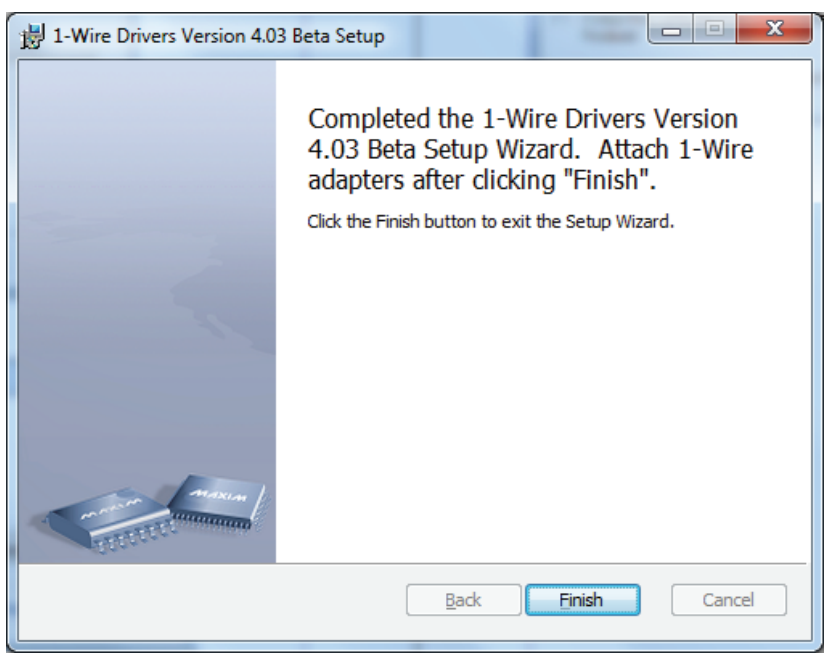

   The Setup Wizard Completion screen is displayed indicating that the driver installation has completed and indicating that you should now attach the 1-Wire USB Adapter.



7. Click on Finish to exit the Setup Wizard.
8. Locate the USB Adapter that came with the Auditcon 2 Series Software package and plug it into a USB port on your PC.

9. Connect the key reader to the USB adapter. The key reader should be positioned near your
   keyboard for easy access.

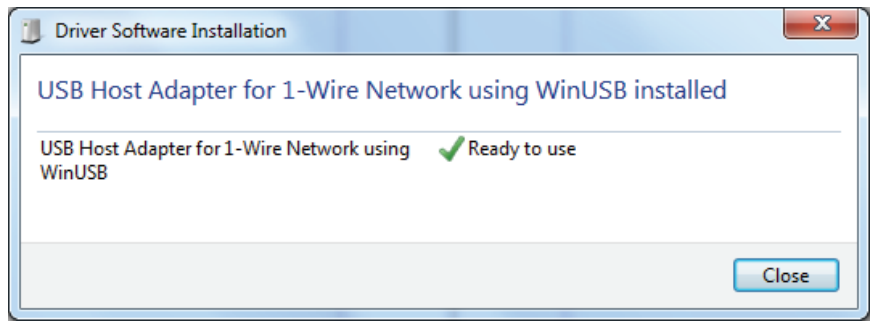

   Once the new hardware device has been found, a message bubble or window will display to indicate that the USB Host Adapter for 1-Wire Network has been installed and is ready to use.



10. Click on Close to close the Driver Software Installation window if displayed.

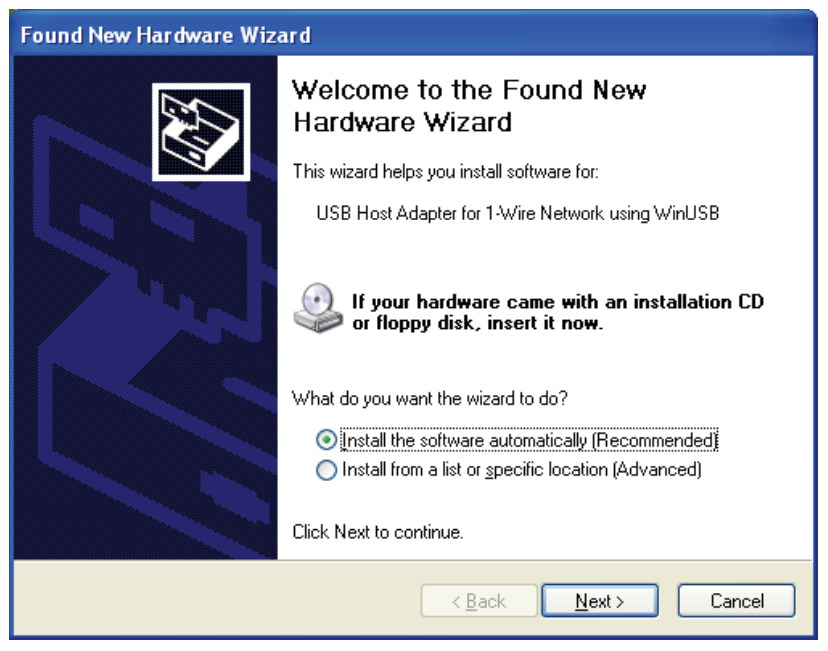

    If your system did not indicate that the hardware device has been installed, you should be prompted by the Found New Hardware Wizard.



    Note: The screen shown above was captured on a Microsoft Windows XP system. If your PC is running under a different operating system, your screens may look slightly different and the Wizard may follow a slightly different process to install the hardware device.

11. Follow the instructions of the Wizard to install the new hardware device. Click on Next> to continue. Once the driver software installation has completed, click on Finish to close the wizard.
