How to install and setup the Auditcon 2 Series Software?

To start the installation and to continue with testing the basic function and operation of the system, you will need:

• Auditcon 2 Series Software Install CD
• Key Reader
• Key Reader Adapter
• Red SA Smart Key.

Warning: Do not install the key reader and adapter at this time. You will be instructed to do so at a later time.

If you have a previous Windows based version of the Auditcon Audit Only or Auditcon 2 software installed, you must remove (uninstall) the old version of the software before installing the new version.


Install the current version of the Auditcon 2 Series Software

1. Check the PC date, time, and time zone to ensure accuracy. Adjust, if necessary, before proceeding.
2. Insert the Auditcon 2 Series Software Install CD into the appropriate drive of the PC.
   Note: Do not remove the Installation CD until instructed to do so.
3. Select the Start icon in the lower left of the Windows screen.

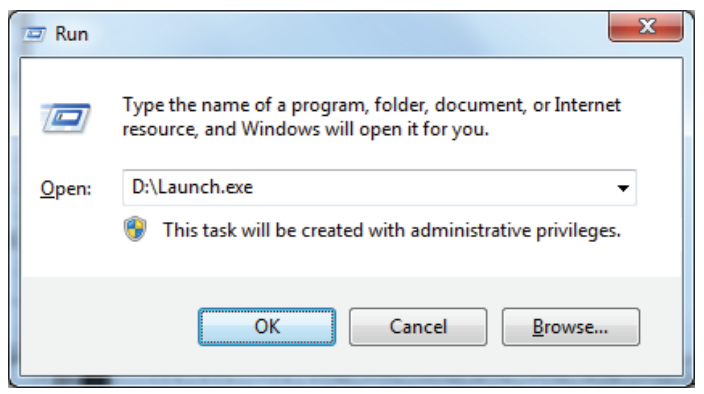

4. Next select the Run icon from the Windows menu. The Run Window will be displayed. If necessary, change the path to point to the drive being used to install the software.


5. Click on the OK button.

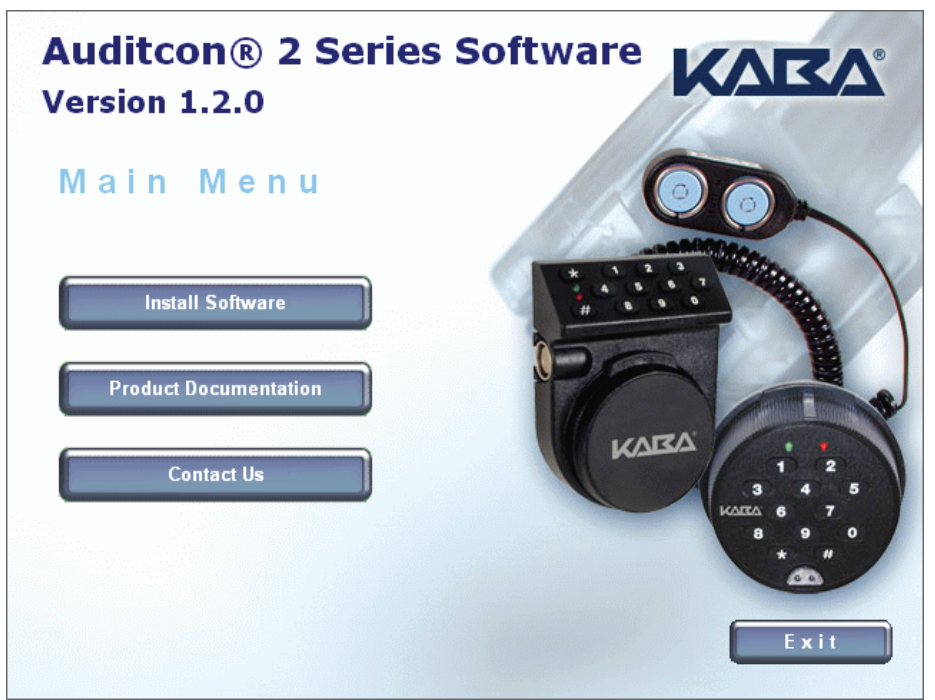

   The Auditcon 2 Series Software Installation Browser is loaded, and the Main Menu of the Browser is displayed.



   Note: It is strongly recommended that you close all other applications before installing the Auditcon 2 Series Software. It is also recommended that you review the Auditcon 2 Series Software Reference Manual before installing the software.

Print the Auditcon 2 Series Software Reference Manual:

1. Select the Product Documentation menu item.

The Product Documentation browser menu is displayed.

2. If you do not already have Adobe® Acrobat® or Adobe® Reader® installed on your system, select the Install Adobe® Reader menu item to install the Adobe software.

3. Select the Reference Manual menu item to load the Auditcon 2 Series Software Reference Manual in PDF format using the Adobe software.

4. Select Print from the File Menu to Print the document.

Note: If your printer has duplexing capability, you may want to select that as a Print option for the Reference Manual.

5. Click on the Main Menu button to return to the Main Menu.

Install the Software Program

1. Select the Install Software menu item.

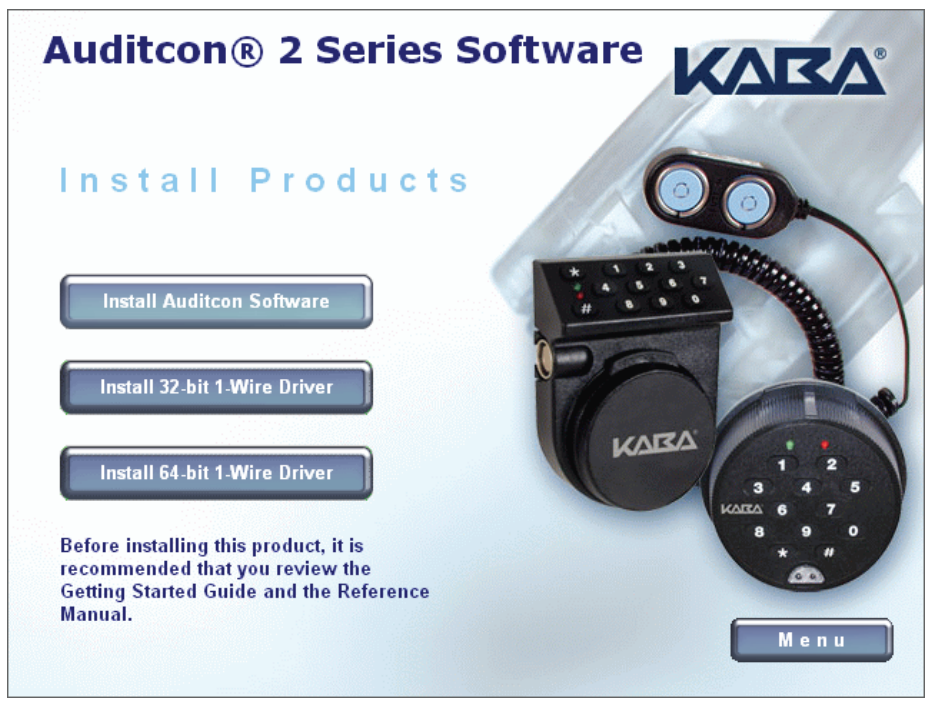

The Install Auditcon 2 Series Software browser menu is displayed.

2. Select the Install Auditcon Software menu item.

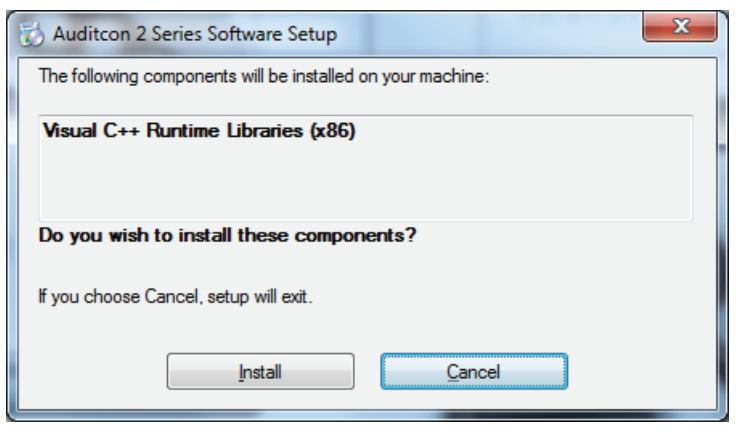

3. If the Visual C++ Runtime Libraries (x86) are not already installed on your PC, the following
   Software Setup window is displayed, prompting to install these components.

Click on Install to install the Visual C++ Runtime Libraries.

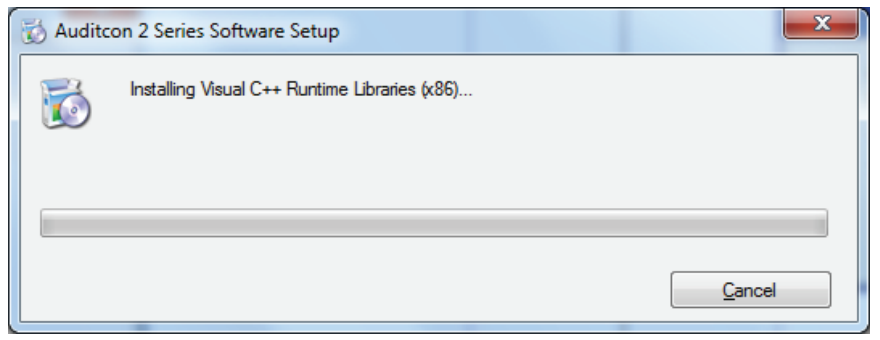

The Setup Wizard “Installing Visual C++ Runtime Libraries (x86) ...” window is displayed.


Once the preparation is completed, the Auditcon 2 Series Software Setup screen will be displayed. The Setup Wizard is a Windows program that will take you through the rest of the setup process.

4. Click on Next to continue with the installation.

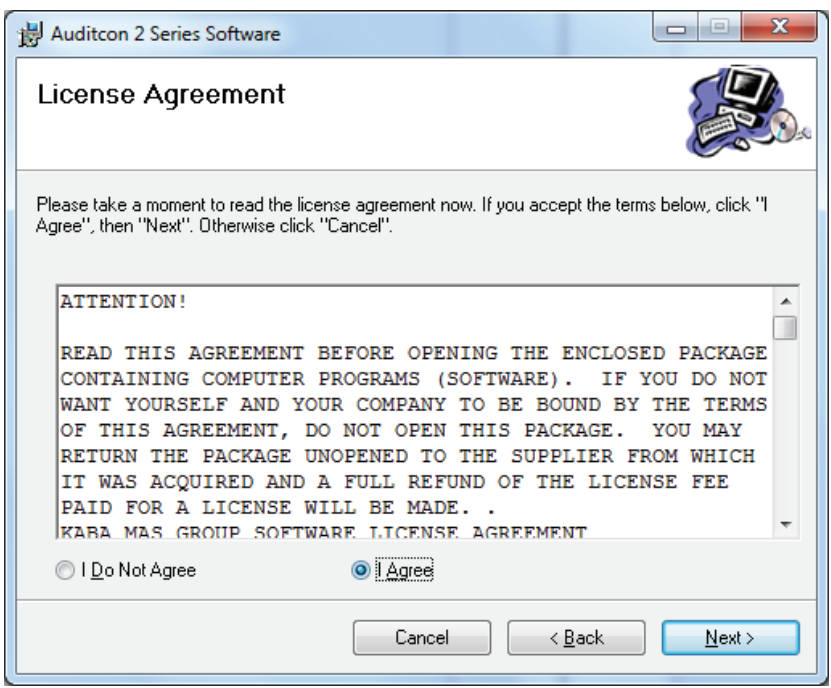

The Software License Agreement acceptance screen is displayed.

5. Read the Software License Agreement and then click on the “I Agree” button to accept the
   terms of the agreement.


6. Click on the Next button to continue.

The Select Installation Folder window will be displayed to allow you to select the program folder to which the Auditcon 2 Series Software program will be added.

Note: The default installation directory is shown. If you want the Auditcon 2 Series Software installed in another directory, click on the Browse button and select the new path. Also, the default value for who can use the software is “Everyone”. If you need to have the software restricted to use by only yourself, select “Just Me”.

7. Click on the Next button to add the programs to the designated folder.

The Confirm Installation screen is displayed.

8. If you wish to change any of your installation settings, click on the Back button. Otherwise, click on the Next button to install the program with the designated settings.

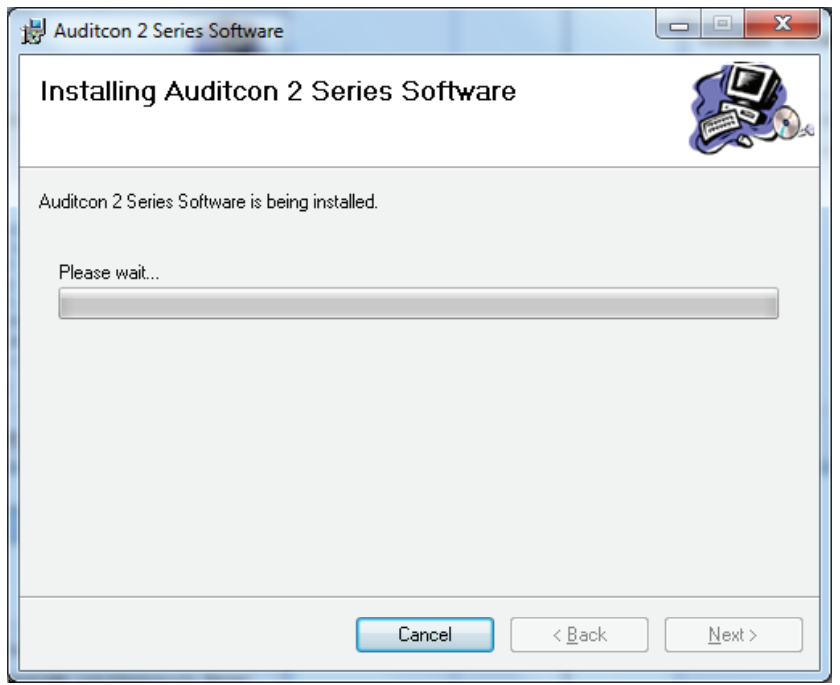

The Setup Status screen is displayed and will show several different status messages as the installation progresses.

The Auditcon 2 Series Software programs will be added to the Windows Program Menu Folder. A desktop icon in addition to a menu item will be created for Auditcon 2 Series Software. Within the menu item, there will be two available system options. The first is Auditcon 2 Series Software and will be used to start the Auditcon 2 Series program. The second available item is Auditcon 2 Series Software Help, which can be selected to display the Help file.

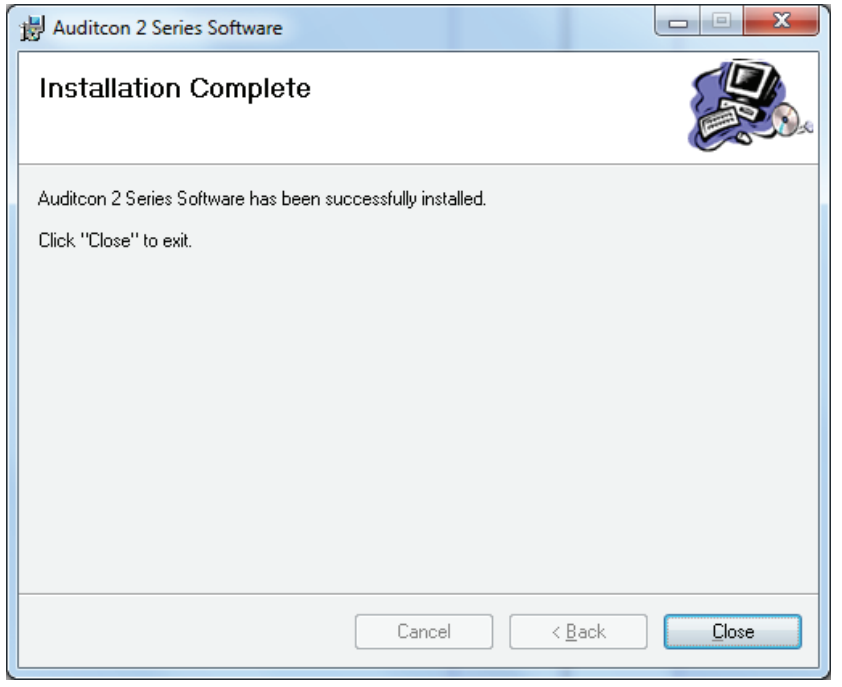

The Installation Complete screen is then displayed indicating that the Auditcon 2 Series Software program has been successfully installed.

9. Click on Close. The software installation is now complete

Applies To

Auditcon 2
