Reading-out audits - Audit via Combi B 90 PC Software

Updated

If during a battery change the lock remains de-energized for more than 1 minute, the time must be set again. If the time will not be set again, only the relative time will be saved in the audit.

If the clock of the lock is not set with one of the time functions either manually or automatically, no real time will be saved in the audit. A calculated relative time will be shown in the read-out.

The audit memory is the event memory of the lock which saves approximately 960 events regarding configuration or operation.

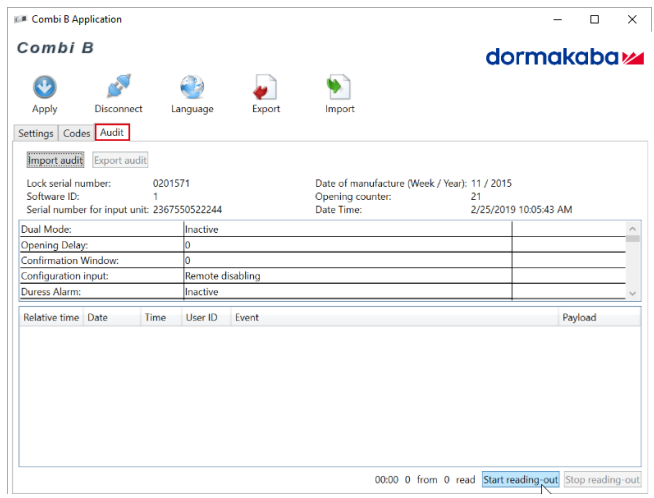

  1. Click on Start reading-out.

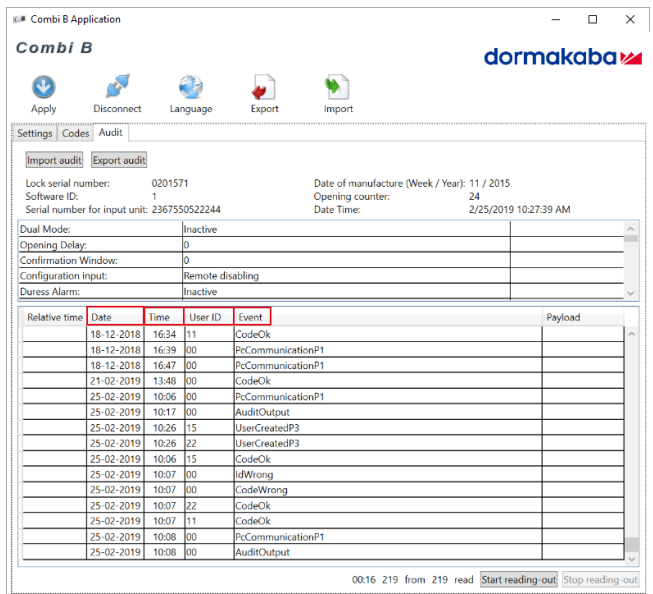

   In the generated audit the events are listed according to date, time and user ID.

  • The first column shows the 'Relative time'. This time is shown when the lock time settings do not correspond with the PC time settings. The 'Relative time' is calculated on basis of the PC time settings and only dates back to the last battery change. Earlier events will not have a time stamp.
  • The second column shows the dates of each event listed in a time sequence starting with the oldest date and ending with the most current date.
  • In the third column the time of each event is listed.
  • The column 'User ID' shows which function was performed by which user.
  • The column 'Events' lists all performed events.
Event Description
Opened The lock is opened.
OpenedByKey The lock was opened with the emergency key.
CodeOK The correct code was entered, but the lock was not opened.
CodeOkOvStart The correct code was entered to start the Opening Delay.
CodeOKDuressAlarm The Duress Code was entered.
DualCodeFirstOk The first code was entered correctly.
DualCodeSecondOk The second code was entered correctly.
CodeWrong A wrong code was entered to open the lock.
IdWrong A user tried to open the lock with no activated or existing ID.
Closed The lock is closed.
AhkNeutralizedP9 The pick-up contact message has been reset.
AhkSet The pick-up contact has been set.
AuditOutput The audit was read-out.
BlockingPeriod1 Blocking period 1 (1 minute blocking time was triggered).
BlockingPeriod2 Blocking period 2 (2 minutes blocking time was triggered).
BlockingPeriod4 Blocking period 4 (4 minutes blocking time was triggered)
BlockingPeriod8 Blocking period 8 (8 minutes blocking time was triggered)
BlockingPeriod16 Blocking period 16 (16 minutes blocking time was triggered).
CodeStateRequestedP6 The code status request was activated (P6).
ConfirmationWindowOpeningDelayP2 The Opening Delay was changed (P2).
DualCodeDisabled The Dual Mode was disabled (P7).
DualCodeEnabled The Dual Mode was enabled (P7).
ExternalPowerAvailable External power available.
ExternalPowerNotAvailable No external power available.
PcCommunicationP1 The PC communication mode was activated on the lock (P1).
DuressAlarmDisabled The Duress Alarm was disabled (P8).
DuressAlarmEnabled The Duress Alarm was enabled (P8).
UnderVoltage Battery low voltage.
MasterCreatedUserP3 The master created a user (P3).
MasterActivatedOrDeactivatedUserP4 The master activated or deactivated a user (P4)
MasterDeletedUserP5 The master deleted a user (P5).
MasterChangedPermission The master changed the authorization of the manager.
TimeWasChangedORSet The time was changed or set.
ManagerCreatedUserP3 The manager created a user (P3).
ManagerActivatedOrDeactivatedUserP4 The manager activated or deactivated a user (P4).
ManagerDeletedUserP5 The manager deleted a user (P5).
ManagerChangedTimeDelay The manager changed an Opening Delay.
ManagerLocksDualCode The manager deactivated the Dual Mode.
TimeDelayAbort Cancellation of Opening Delay.
