Configuring the inputs - Overriding Dual Mode via Combi B 90 PC Software

When the function 'Overriding Dual Mode' is activated and an input signal has been applied, the activated Dual Mode will be overridden and the lock can be opened in Single Mode. No second code is required.

1. Select the checkbox 'Overriding OD/CW'

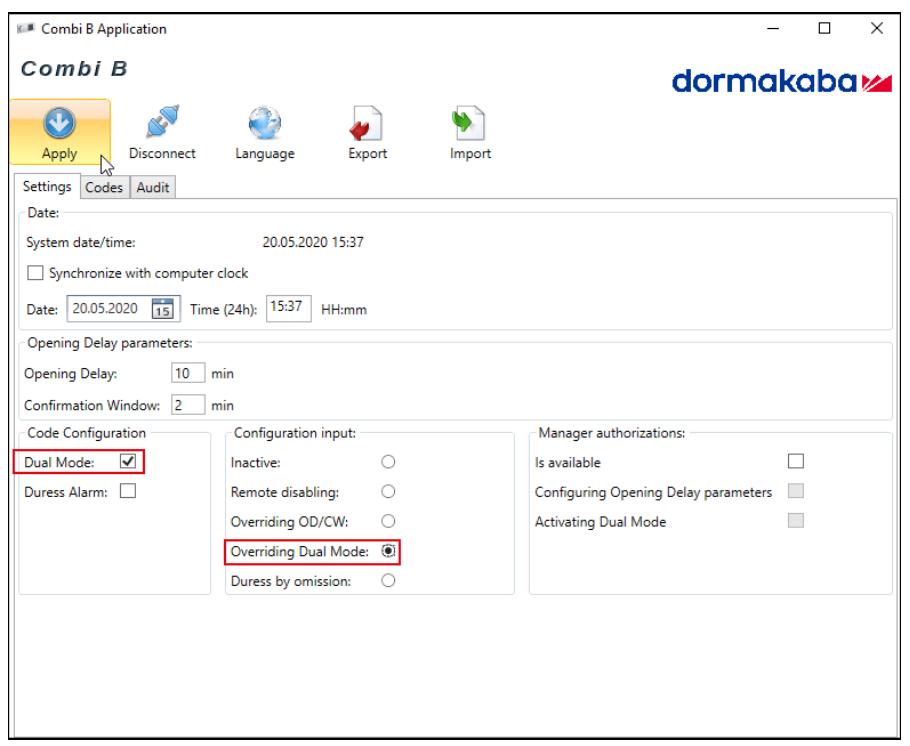

2. Click on Apply.

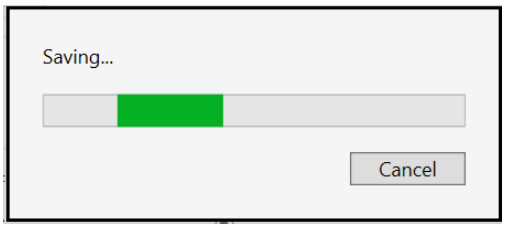

   The function 'Overriding Dual Mode' is activated.
