Question

How to add a User on a 702 non-Display Keypad in LA GARD 700 Series?

Answer

Follow these steps to add a User on a 702 non-Display Keypad:

Using the Keypad, perform the following sequence of keystrokes:

1. Input the pound key (#), then the number 50
2. Input the Authorized User ID and Combination
3. Input the New User ID and Combination
4. Input the User Type (2 = Standard, 4 = Manager)

5. Input the User Lock Privileges

   Number	User Lock Privilege
   1	Open Lock
   2	Audit Lock
   3	Open and  Audit Lock
   5	Open and TDO Combination
   7	Open, Audit and TDO Combination

6. Press <return key> (←)
7. The Keypad will beep three times and flash a green LED once complete.

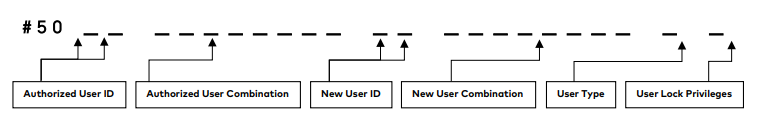

The total sequence of keystrokes is formatted as follows:

   Example: By entering # 5 0 00 88888888 01 123456 2 1 and hitting the (←), a Master user with a
   combo set to 88888888 can create a user 01 with default combo of 123456 that is a Standard
   user, and can only open the lock.
