Paxos Operating and Display Elements of the Dial Know Input Unit

Updated

Paxos Operating and Display Elements of the Dial Know Input Unit

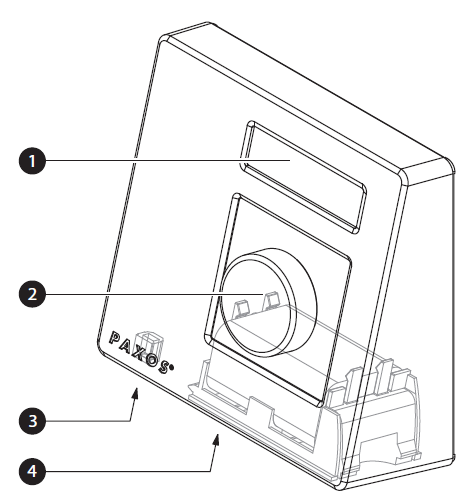

Display of elements

  • Two-line liquid crystal display (LCD)
  • Dial knob
  • USB port (connection to computer with programming or audit software)
  • Battery compartment



Dial knob input unit

Dial KnobInstructionFunction
 Press dial knob briefly
  • Confirming input
  • Calling the user menu from the standard mode display
   Press dial knob >1.5 seconds.
  • Deleting input
  • Aborting a function
  • Returning to the previous menu level
  Turn dial knob left or right.
  • Selecting the next or previous menu option
  • Selecting the next or previous input value
  • Increasing or decreasing the value displayed
 Press and hold down key. Release dial knob as soon as the info menu appears.Calling Info menu
