Wiring A Strike Without The Connector

This article applies to the follow strike models:

• 0 Series
• 2 Series
• 6 Series
• VR Series

Wire as follows, if the wiring harness is missing, damaged, or not included

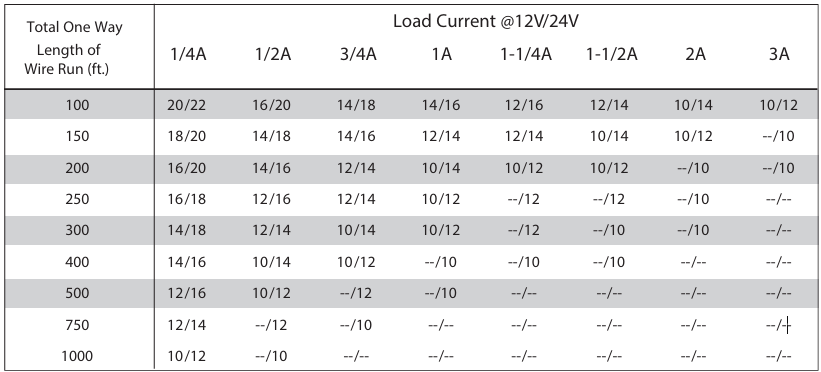

24VDC Connect Red to (+) Connect Black to (-) Connect Blue to Yellow 12VDC, 12-24VAC, or 11-16VAC Connect Red & Blue to (+) Connect Black & Yellow to (-)
