Kaba La Gard 4002 Alarm Connections

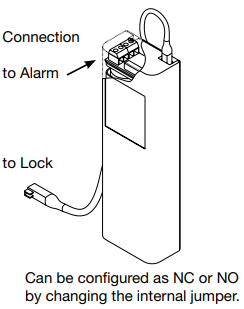

4002 large alarm/battery Box


Can be configured as NC or NO by changing the internal jumper.

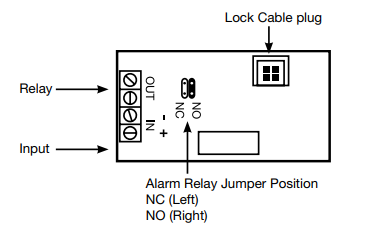

4002 alarm Connections

4 Wires 26 AWG

Alarm Relay Connections
Connect OUT to Alarm
Normally Open (NO) or Normally Closed (NC)
Relay Contacts: Settable
50V DC @ 250 mA Max Load
Switches 1 sec.

Remote Input to Disable or Override Lock
Connect IN to Remote Control
5-12V DC @ 20 mA Max Input
