Plug the appropriate audit cable for the Entry Device into the USB or Serial Interface Adapter.

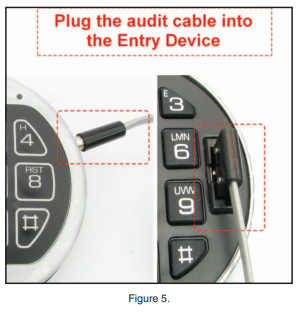

Connect the audit cable to the Entry Device (Figure 5).
Click the safe icon button or select Start Acquisition from the Actions menu on the Menu bar (Figure 6).
Enter Manager combination and hold down last digit of combination until unit double signals and the LED stays on.

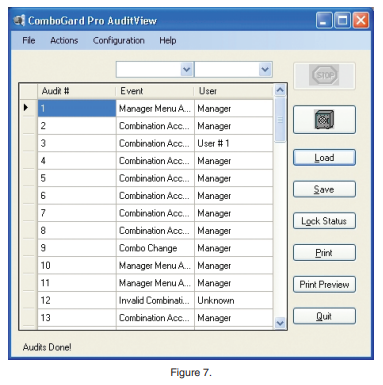

PRESS 7. The Entry Device will beep once and the audit records will be transmitted to the PC for display on the screen (Figure 7). NOTE: You can interrupt the transmission by clicking on the STOP sign button or by selecting Stop Acquisition from the Actions menu on the Menu bar.
Once the audit is complete, disconnect the audit cable from the Entry Device.

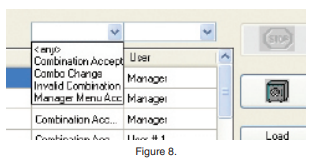

Select Data There are two “selection” boxes above the audit listing. The selection box on the left allows you to select audit data of a specific event type. The selection box on the right allows you to select audit data for a specific user. Click on the respective drop down arrows for the available selections (Figure 8). Once a selection is made, a revised audit list is displayed.
Sort Data The default sort order of the audit listing is by Audit #. You can click on the Event heading to sort the audit by event, or click on the User heading to sort by user.

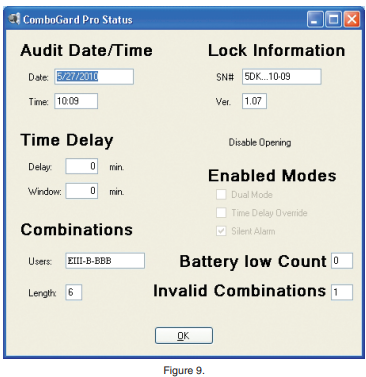

Lock Status Click on the Lock Status button to display status information about the Lock. A window is displayed showing the audit date and time, Time Delay settings, Lock version, the status of all users, etc. (Figure 9).
User Status Detail The first character of the User Status field represents the status of the Manager. The following nine characters represent the status of each of the nine possible users, respectively 1-9.
Status values and meanings for the Manager are as follows: I = Installed - Manager combination has not been changed. The Manager can change the lock configuration settings. E = Enabled - Manager combination has been changed. The lock has been activated and the configuration is frozen.
Status values and meanings for the Users are as follows: I = Installed - User has been activated by the Manager. D = Disabled - User has been disabled by the Manager but can be reinstated. - (Dash) = Deleted - User has been deleted by the Manager but can be reactivated. B = Blocked - User was not installed during Lock Setup and cannot be activated.

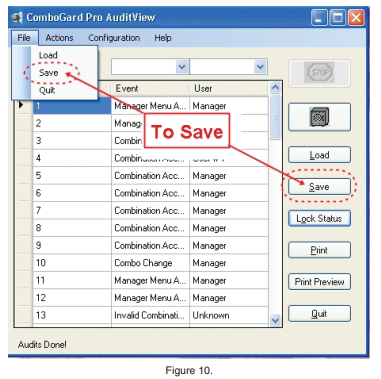

Save Audit: Once the audit is complete you may name and save the audit file (*.log) for future use. 1. Click the Save button or select Save from the File menu on the Menu bar (Figure 10).

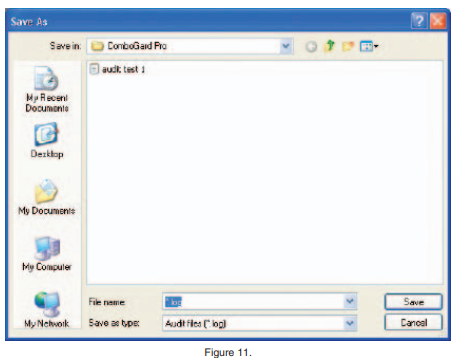

2.Enter the file name to be saved (Figure 11). 3. Click the Save button (Figure 11).

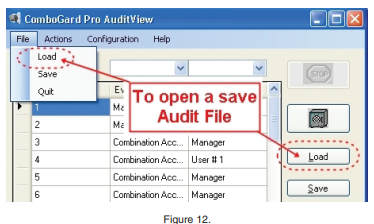

View a Saved Audit File: Once an audit file has been saved, it may be viewed by using the Load function of the ComboGard Pro AuditView software. 1. Click the Load button or select Load from the File menu on the Menu bar (Figure 12).

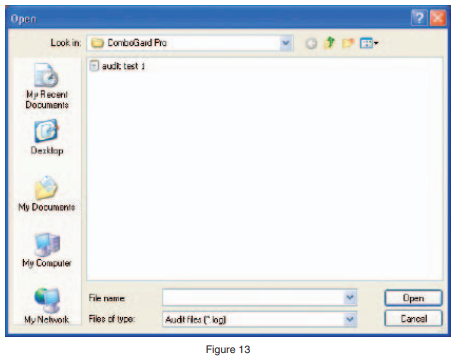

2. Select the desired audit file to view and click the Open button (Figure 13)
Print an Audit File: Click the Print button to print the current audit file displayed, or select the Print Preview button to view the audit file in a browser window before printing.
Exit the program: Click the Quit button, or select Quit from the Files menu on the Menu bar, or click on the red [X] in the upper right hand corner (Figure 14).
