Kaba La Gard 2789 Alarm Cable Connections

2789 Small alarm/battery Box

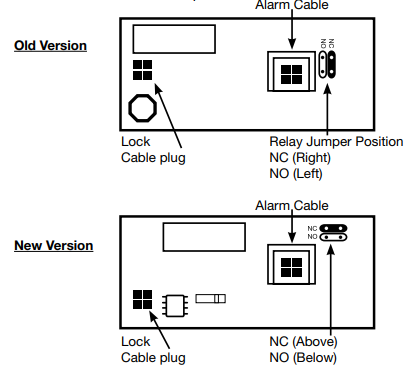

Can be configured as NC or NO by changing the internal jumper.


2789 Alarm Cable Connections

4 Wires 26 AWG

Alarm Relay Connections
Red and Black
Normally Open (NO) or Normally Closed (NC)
Relay Contacts: Settable
50V DC @ 250 mA Max Load
Switches 1 sec.

Remote Input to Disable or Override Lock
Yellow: Positive Input (+)
Green: Negative Input (-)
5-12V DC @ 20 mA Max Input
