Setup Preparations - Alarm Interface 871084-2

Setup Preparations
The Alarm Interface should have resistors R1 to R5 populated, before setup, if the connections are to be used.

Setup – Alarm Interface to Lock

1. Connect the Interface cable to the battery port of the lock
2. Connect the bolt sensor cables to the Alarm Interface:
     a. Normally closed cable to pin 1
     b. Common cable to pin 2
     c. Normally open cable to pin 3
3. Connect door sensor leads to pins 6 & 7.

Setup – Alarm Interface to Alarm System

1. The bolt arm/ disarm connections are made to pins 9, 10 & 11. Pins 9 & 10 are normally closed (NC). Pins 10 & 11 are normally open (NO). When using only 2 wires short either R1 or R2 (NC connection) to “C” using a resistor.
2. The tamper pins 12 & 13 are connected through the normally closed (NC) switch.
3. The door arm/ disarm connections are made to pins 14 & 15.
4. The Remote Disable connections are made to pins 16 & 17 with 12 V, 5 mA.
5. The Silent Duress signal from the lock connected through pins 18 & 19 triggers the relay switch for 1 second.

Setup – Test

Test the system’s functioning before activating the alarm system:

Bolt sensor

1. Connect the lock to the Alarm Interface.
2. Close lock – pins 1 & 2/ 9 & 10 are closed.
3. Operate lock; Enter opening code.
4. Pin 2 & 3/ 10 & 11 are closed

Remote disable

1. Activate the Remote Disable (12 V DC, 5 mA) to pins 16 & 17.
2. Operate lock; Enter opening code. Lock signals beeps 6 times. Lock does not open as long as the Remote Disable is activated.

Silent duress

1. Operate lock; Enter Silent Duress code – Last digit ± 1. Relay switch opens 1 second.
2. Pins 18 & 19 open 1 second.

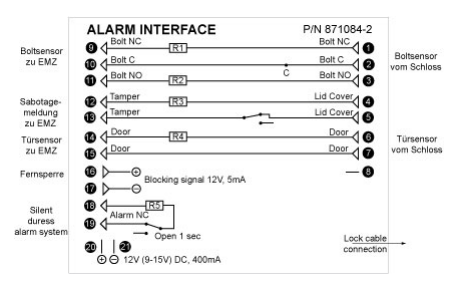

Circuit diagram

Lock and Door Setup
