Specifications

For access to specifications in Spanish: Simplex 1000 Specifications (Spanish)

For access to Specifications in French: Simplex 1000 Specifications (French)

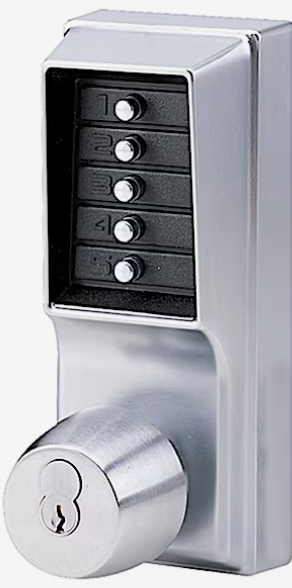

Product Details

• Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Handing: Factory-handed for left-hand doors; easily field reversible
• Operation Modes:
  • Pushbutton Access
  • Passage (select models)—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
  • Lockout (select models)—disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only.
• Economical: A cost effective access control solution

Technical Details

• Construction: Heavy-duty cylindrical lock housing with cast front housing, molded front cover, brass adjusting plate; die cast zinc fixed knobs
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Factory-handed for left-hand doors; easily field reversible
• Backset: 2 3/4" (70mm), 2 3/8" (60mm)
• Latch: 1/2" (13mm) throw latch, 3/4" (19mm) throw latch (optional)
• Minimum Stile Recommended: 5" (127mm)
• Strike: Standard strike plate; ASA strike plate
• Key Override:
  • Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
  • Removable Cores: Large format—Medeco/ASSA/Yale/Abloy *5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
• Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through bore holes required.
• Door Thickness: 1 3/8" (35mm) to 2 1/4" (57mm)—Pre-assembled to accommodate 1 5/8" (41mm) to 2" (51mm)
• Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
• Installation: ASA 106 or 161 preparation with additional through bore holds; 1" (25mm) diameter for combination change; 2 x 1/4" bore holes for mounting screws and 1" (25mm) for optional unrestricted access
• Weight: 7.25lbs (3.7kg)
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Warranty: 3-year warranty
• Finishes:
  • Standard Finishes:
    • Satin Chrome 26D (626)
    • Antique Brass 05 (609)
  • Optional Finishes:
    • Bright Brass 03 (605)
    • Bright Chrome 026 (625)

Templates

Instructions

How To Videos

• How to Change the Combination
• How to Reset an Unknown Combination - Old Style Chamber
• How to Reset Unknown Combination - New Style Chamber

Care and Maintenance

Important Information

 Before using any cleaning or disinfecting product, please take the following steps:

• Only use products that are recommended for the intended surfaces - particularly on plastic surfaces, especially when using alcohol-based cleaning agents

• Always visit the website of the cleaning product manufacturer for a list of specific properties or instruction guidelines

• Pay special attention to plastic surfaces with a gloss finish as these may be more susceptible to scratching or tarnishing

• We strongly recommend first testing any new product on a small surface and waiting for a period of 4 hours to ensure there is no detrimental effect

Extreme Conditions

For locks with Ocean Front finish, we also recommend regular cleaning and waxing.

• On a weekly basis, remove salt from the lock using a damp cloth. This is for area subject to salt mist.

• We recommend cleaning, polishing and waxing locks using a suitable polisher agent every 6 months and this should be adjusted according to the severity of the environment.

Lock Finish warranty

The standard warranty on the dormakaba lock includes the finish, subject to the conditions mentioned above being met.
