Question What is the procedure to return a 790 lock without MKO back to factory mode. |
|
Answer

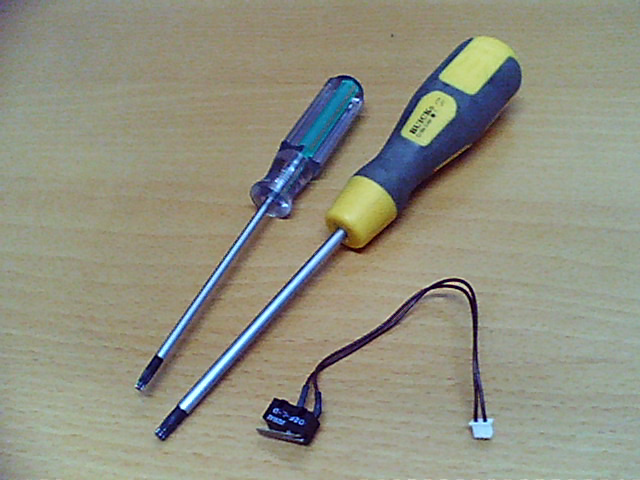

Tools Required: Torx Screwdrivers (T10 and T15) and Override Switch Assy. for 760 (101-510672)

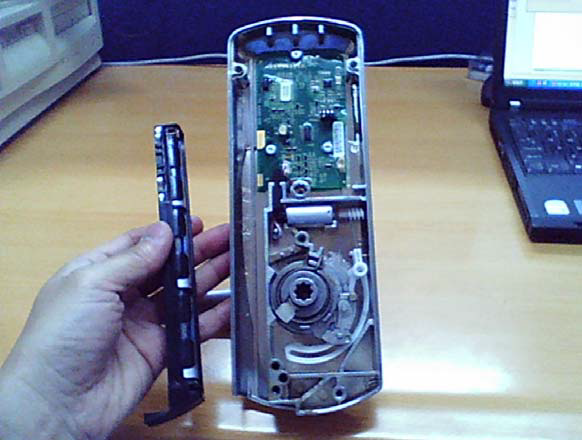

STEP 1. Take out the battery pack and open the plate on the back of the 790 front housing.
STEP 2. Plug the switch in position.
STEP 3. Install the battery pack, then the Green LED flashes once, and the Motor action. STEP 4. Turn on the Cam Turn Knob in 90 degree.
STEP 5. Press and hold the switch, and then the green light will flash.
STEP 6. Release the switch after the green flash.
STEP 7. Restore the position of the Cam Turn Knob. The lock has been returned to virgin mode.
To download a copy of these instructions, click on the link below: |
|
Additional Information There is a different process to be used if 790 lock has MKO. |
|
Applies to: |
