1. Modify header T-slot height
Fig. 1 Header T-slot height modification
Fig. 2 Horton T-slot
1 T-slot height modification
2 T-nut (Pack 104)
3 Header
4 Horton T-slot
1.1 Existing header T-bolts
Move exiting header T-bolts to right and left hand ends of header.
1.2 Increase height of header T-slot.
1. Increase height of T-slot in a location near one side of header.
• Recommended tool: 7/8" to 1-1/8" Unibit.
• Horton headers use top T-slot for mounting backplate and return pulley assemblies (Fig. 2)
TIPS AND RECOMMENDATIONS
Expansion of T-slot height is necessary to install T-nuts (Fig. 1.3).
2. 115 VAC wiring termination location
2.1 Header 115 VAC wiring location.
1. 115 VAC wiring will terminate at backplate DC power supply location (Fig. 6.3.1 as an example).
2. If required, extend existing 115 VAC wiring to DC power supply location before proceding.
3. Insert T-nuts into header T-slot

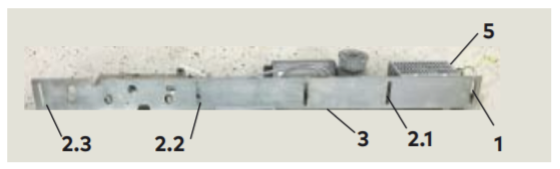

Fig. 3 Backplate slots for T-nut locations

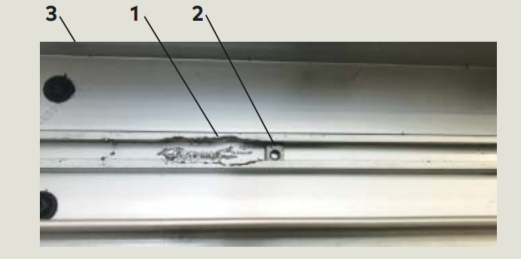

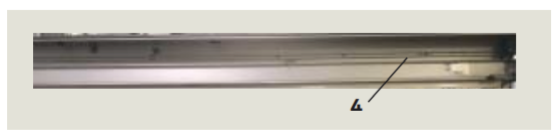

Fig. 4 Header T-slot
Fig. 5 Pack 104
Fig. 6 T-bolt, nut
1 Backplate slot for T-bolt (Fig. 6)
2.1 Backplate slot
2.2 Backplate slot
2.3 Backplate slot
3 Backplate
4 Header T-slot
5 DC power supply
6 Pack 104T-nuts
7 Special T-bolt and nut
TIPS AND RECOMMENDATIONS: Backplate component layout may differ from Fig. 3.
3.1 Insert T-nuts for backplate mounting.
1. Insert (3) T-nuts (Fig. 6.3.3) into header T-Slot at height modification location (Fig. 1).
2. Position T-nuts at backplate assembly location in header.
4. Install backplate into header

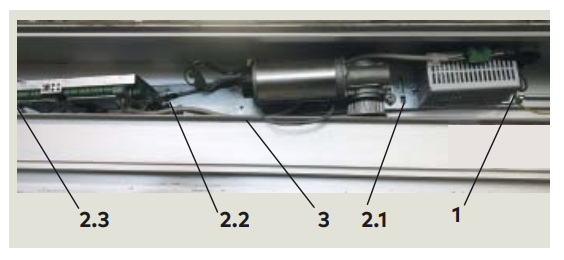

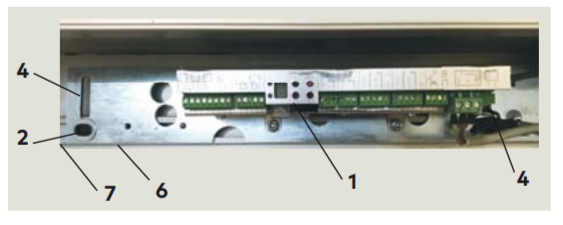

Fig. 7 Backplate T-nut locations in header
1 Backplate slot
2.1 Backplate slot
2.2 Backplate slot
2.3 Backplate slot (not shown)
3 Backplate
Fig. 8 Pack 104
6 Pack 104 T-nuts
Fig. 9 T-bolt, nut
7 Special T-bolt and nut

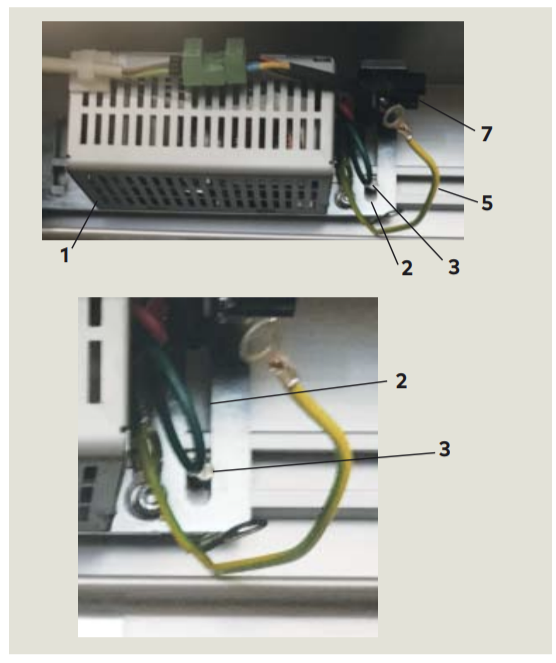

Fig. 10 T-bolt in backplate slot
1 DC power supply
2 Backplate slot next to DC power supply 115 VAC connection
3 Special T-bolt
5 Backplate ground wire
7 115 VAC receptacle

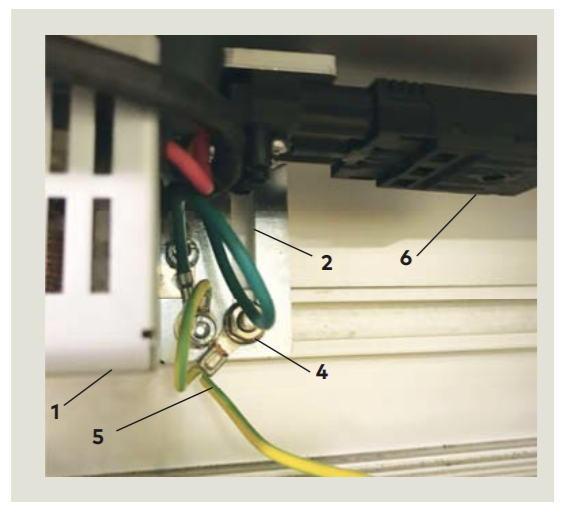

Fig. 11 T-slot bolt nut
1 DC power supply
2 Backplate slot next to DC power supply. 115 VAC connection
4 T bolt nut
5 Backplate ground wire
6 115 VAC plug
4.1 Place backplate assembly (Chapter 5)into header.
1. Place backplate assembly into header.
CAUTION
Seven to eight inches of space next to DC power supply 115 VAC receptacle (Fig. 10.) is required
for installing and removing 115 VAC plug (Fig 11) and wiring.
2. Position installed T-nuts (Para. 6.3.1) in approximate backplate T slot locations 2.1, 2.2, and 2.3 (Fig. 7).
4.2 Install backplate over special T-bolt.
Special T-bolt (Fig. 9) will be used as a ground connection.
1. Insert special T-bolt in header T-slot next to DC power supply (Fig 10).
2. Install backplate slot next to DC power supply 115 VAC connection (Fig. 10) over special T-bolt.
3. Place backplate ground wire lug over special T-bolt.
4. Thread nut (Fig. 11) onto special T-bolt but do not fully tighten.

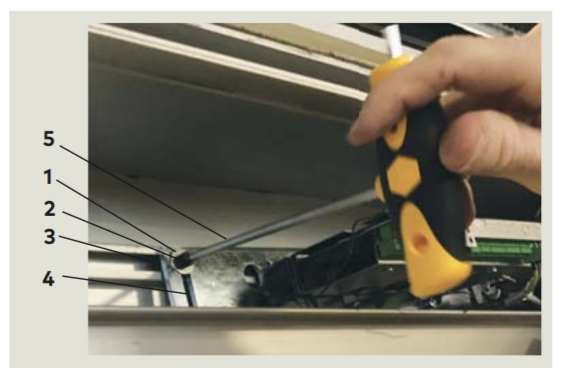

Fig. 12 Securing backplate slot
1 Pack 3 18 mm flat washer
2 Pack 102 1/4 x 1/2" SHCS (Horton)
2 Pack 1031/4 x 5/8" SHCS(Stanley)
3 Pack 104, T-nut
4 Backplate slot
5 5/32" T-handle hex key
Fig. 13 Pack 3
1 Pack 318 mm flat washer
Fig. 14 Pack 103
2 Pack 1021/4 x 1/2" SHCS (Horton)
Fig. 15 Pack 104
2 Pack 1031/4 x 5/8" SHCS
Fig. 16 10 Pack 102
3 Pack 104T-nuts
Fig. 17 Backplate flush with header T-slot
1 ESA II controller
2 Pack 1021/4 x 1/2" SHCS (Horton)
2 Pack 1031/4 x 5/8" SHCS (Stanley)
3 Nut
4 Backplate slot
6 Bottom of backplate
7 Bottom of header T-slot
8 DC power supply

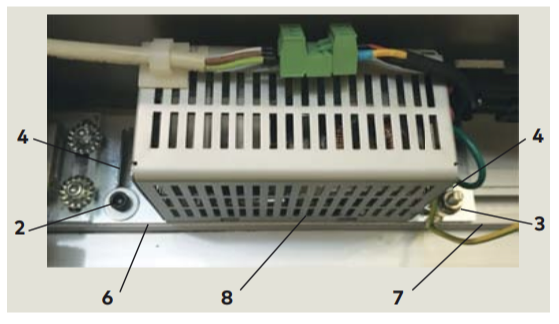

Fig. 18 Backplate flush with header T-slot
1 ESA II controller
2 Pack 1021/4 x 1/2" SHCS (Horton)
2 Pack 1031/4 x 5/8" SHCS (Stanley)
3 Nut
4 Backplate slot
6 Bottom of backplate
7 Bottom of header T-slot
8 DC power supply
4.3 Install SHCSs into T-nuts.
1. Align the three T-nuts in header T-slot behind backplate slots (Fig. 6.4.1) before proceding with step2.
2. Place 18 mm flat washer onto SHCS (2).
3. Using 5/32 T-handle hex key, thread SHCS (2) into T-nut. Do not tighten. LH backplate slot shown as reference.
4. Repeat for remaining two SHSCs
4.4 Align backplate flush with header T-slot and tighten SHCSs (Stanley).
1. Lift backplate until bottom of backplate is flush with bottom of header T-slot.
2. Tighten (2) SHCS at ESA II controller backplate slots. Check for flush surfaces between bottom of backplate and bottom of header T-slot.
3. Tighten SHCS at DC power supply.
4. Check for flush surfaces between bottom of backplate and bottom of header T-slot.
4.5 Tighten nut on special T-bolt.
5. Tighten nut (3) at DC power supply.
4.6 Backplate mounted on top of header (Horton).
1. Position backplate on top of header
2. Insure backplate is parallel to header.
3. Tighten three SHCS and nut on special T-bolt.
