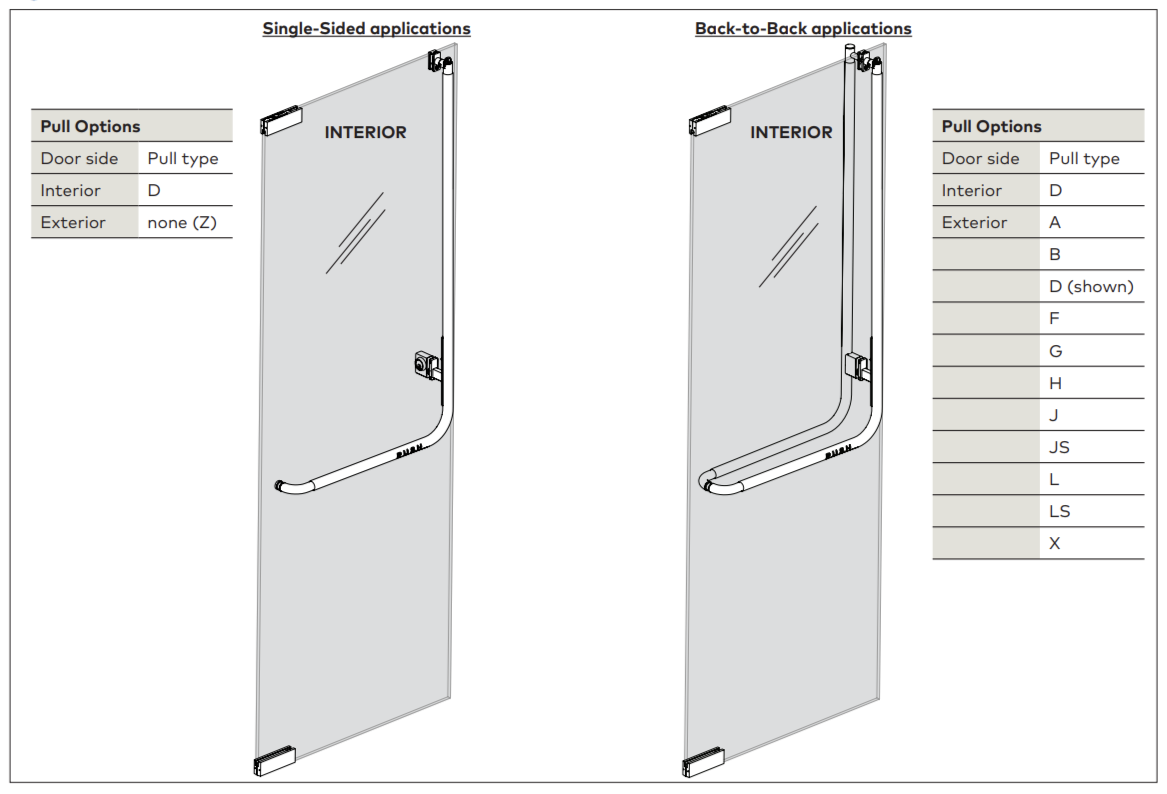

1. Overall

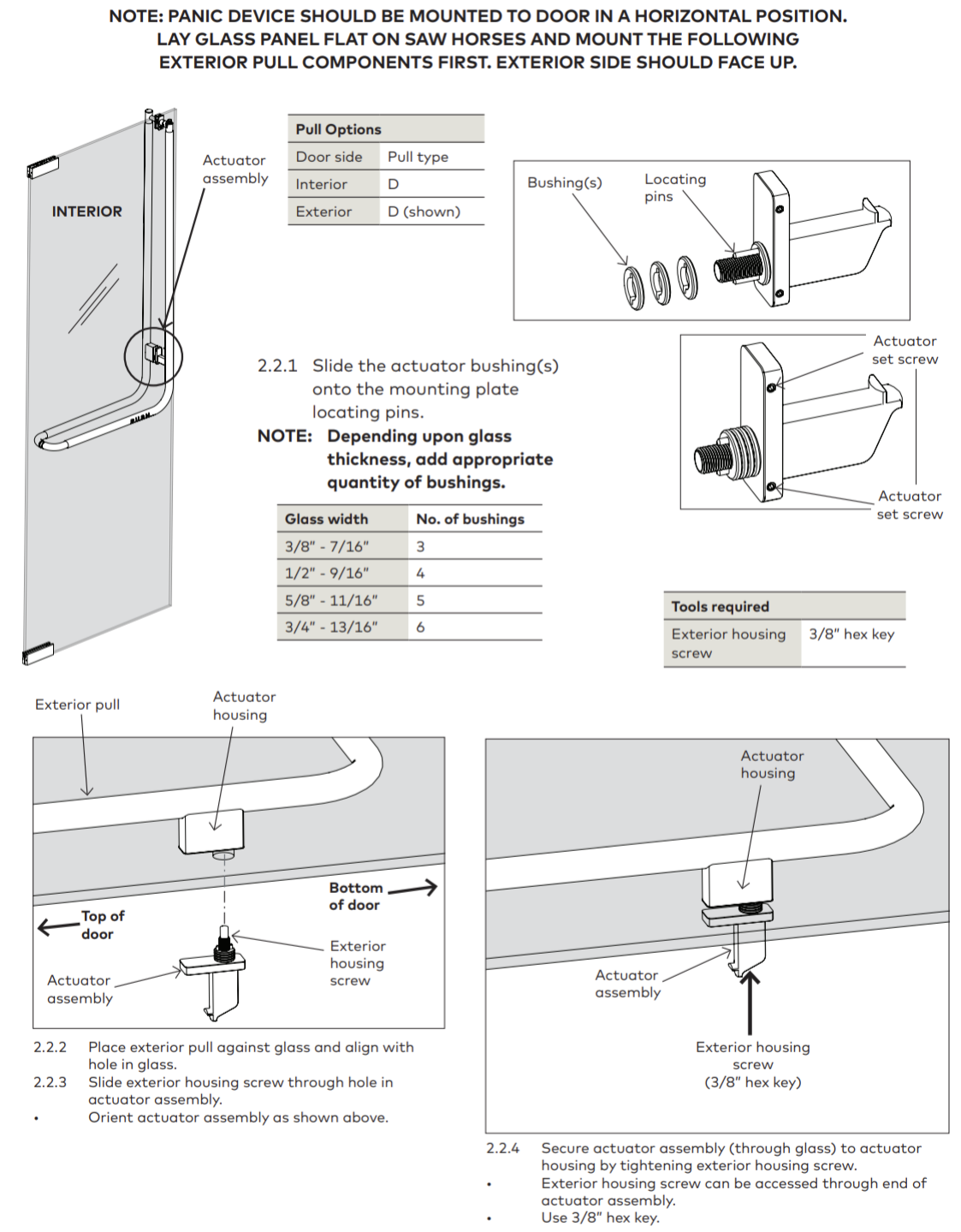

2. Mount exterior pull components - actuator housing

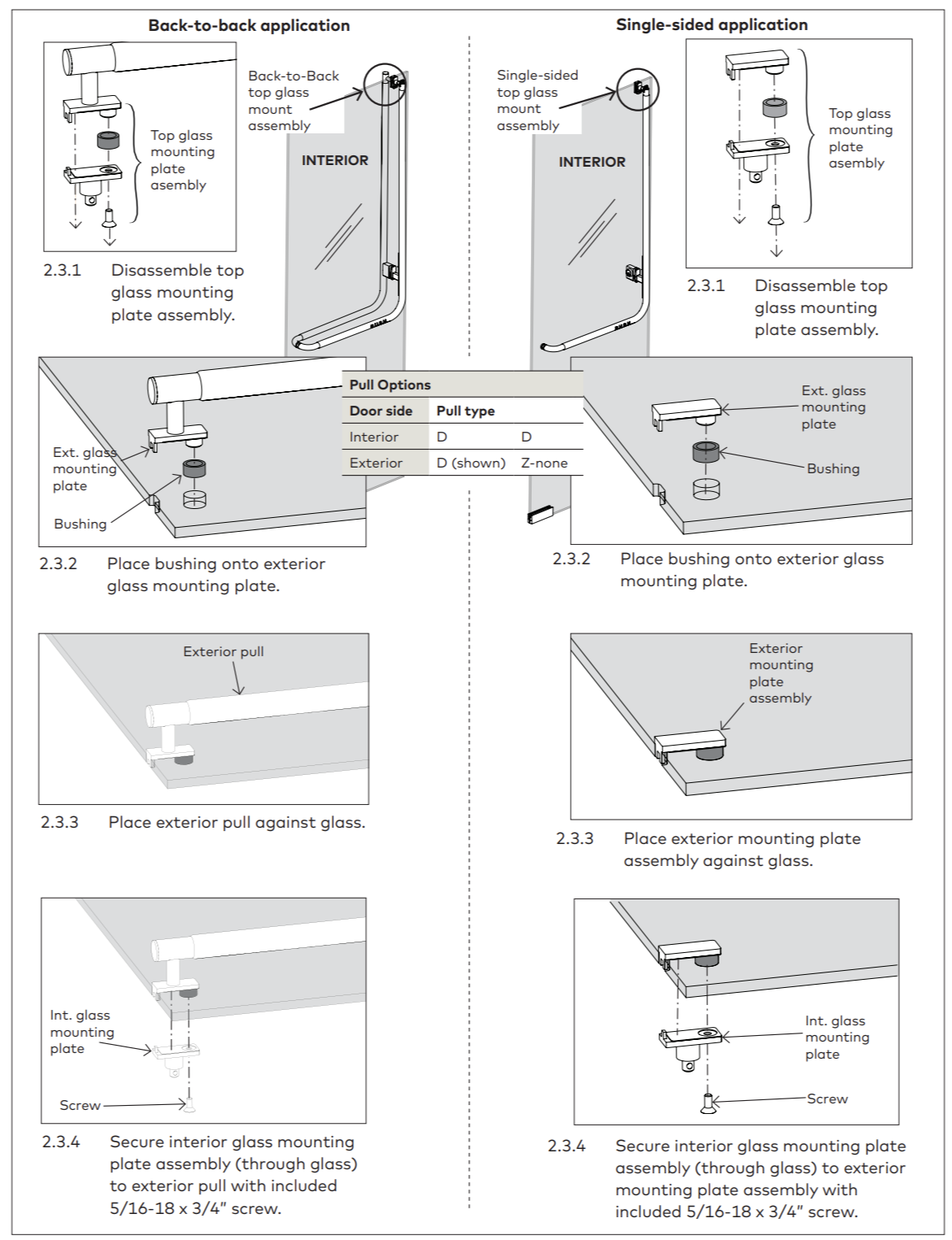

3. Mount exterior/interior pull components - top standoff

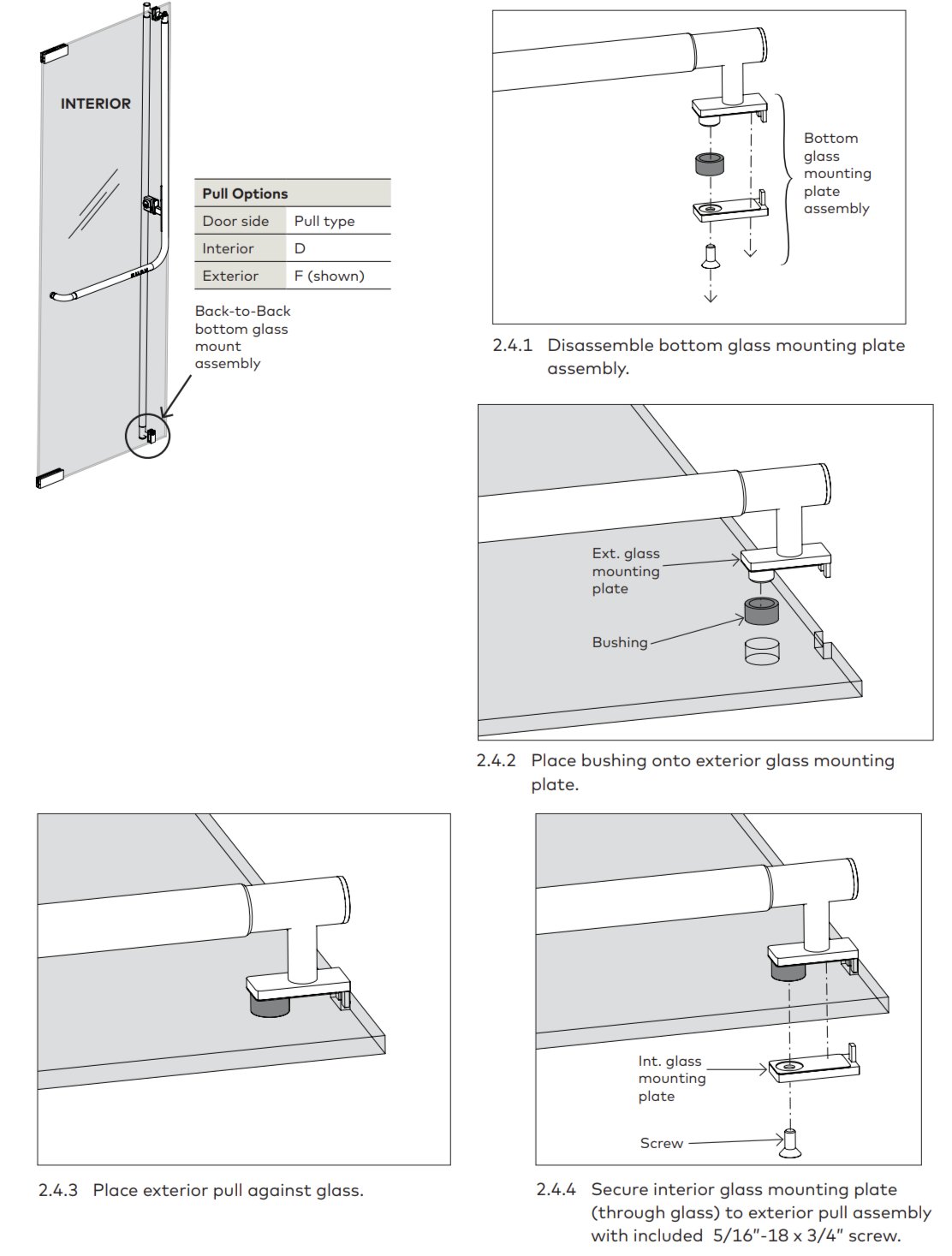

4. Mount exterior pull components - bottom standoff

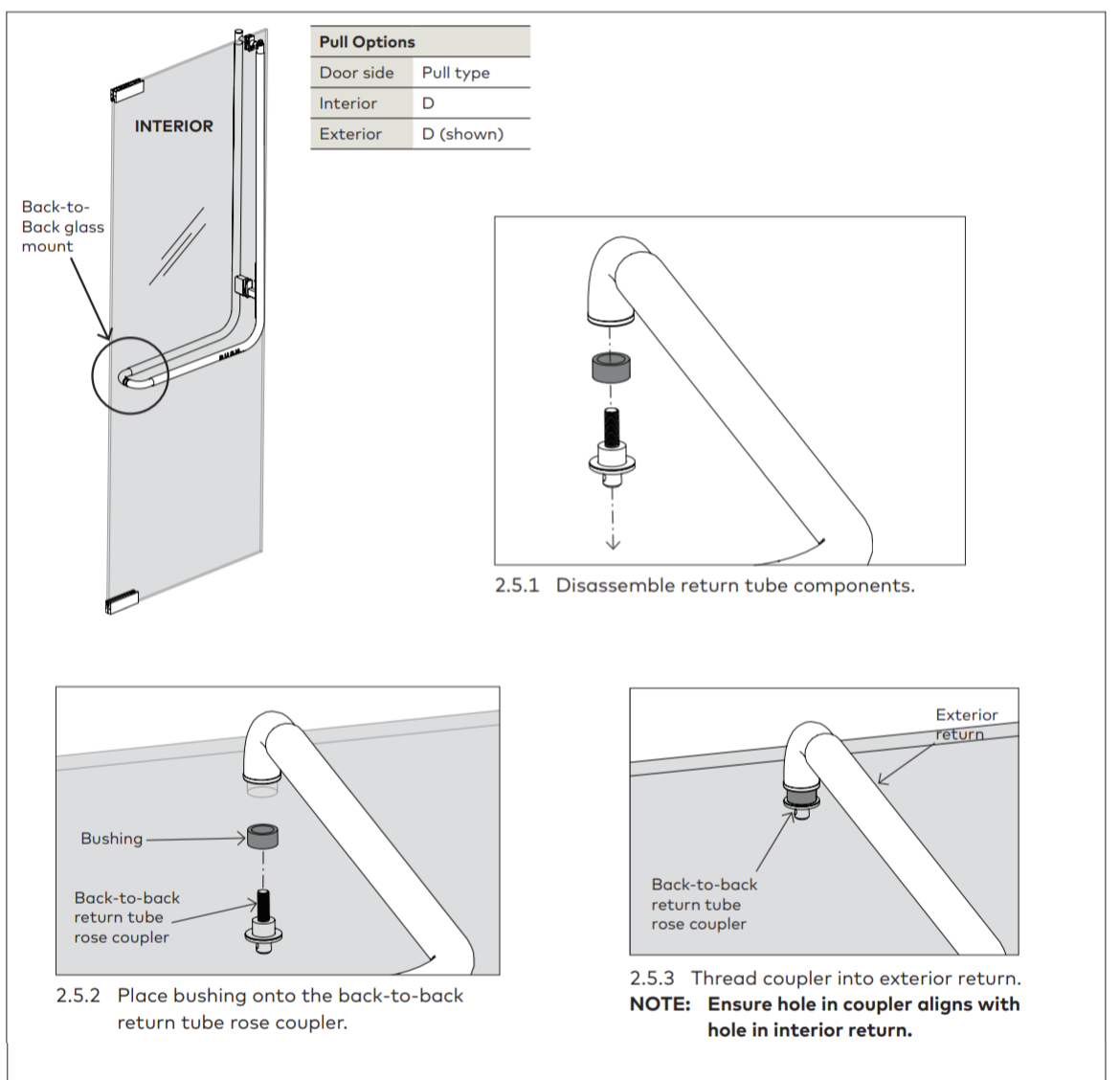

5. Mount exterior pull components - return tube (back-to-back)

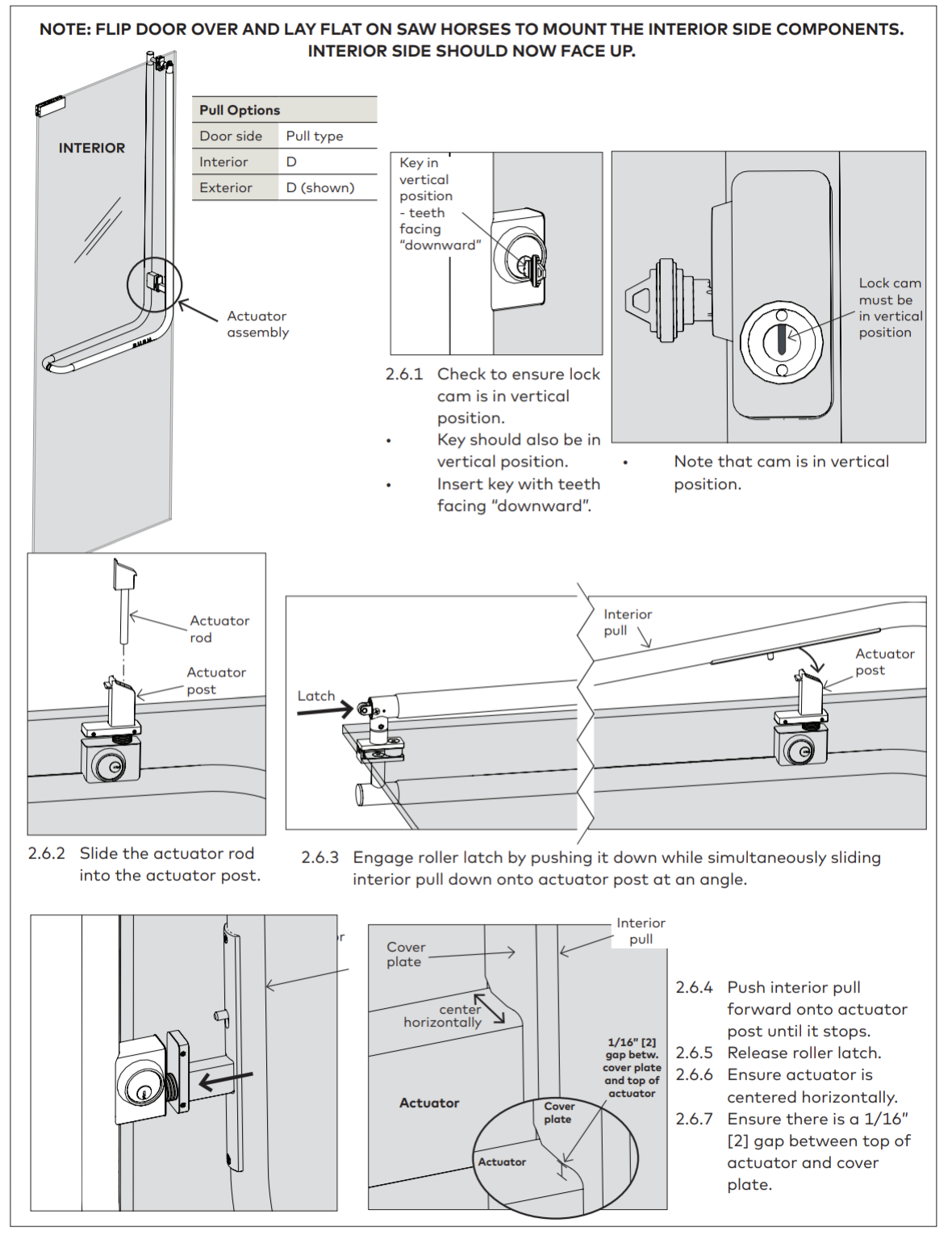

6. Mount interior pull components - actuator housing and int. pull

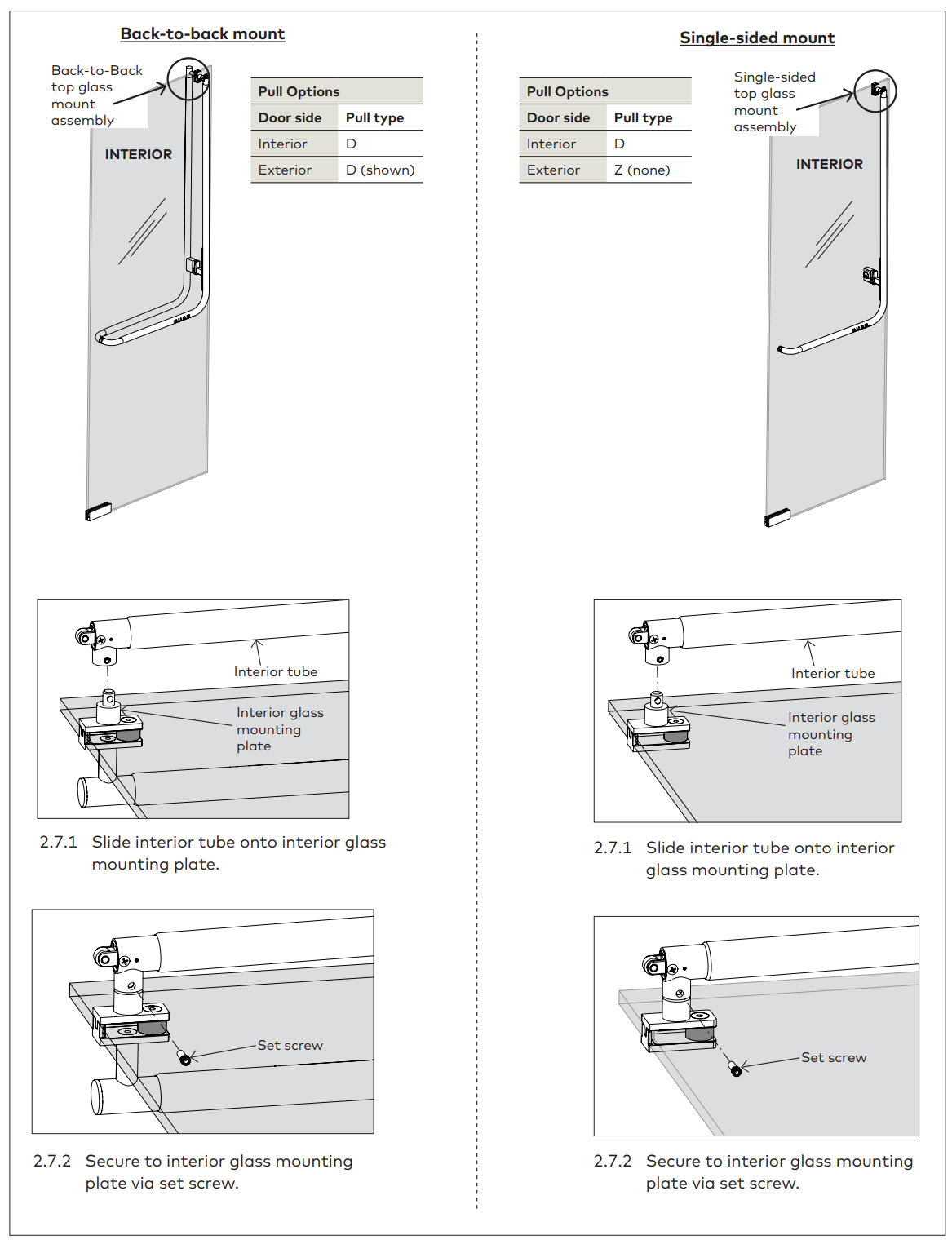

7. Mount interior pull components - top standoff

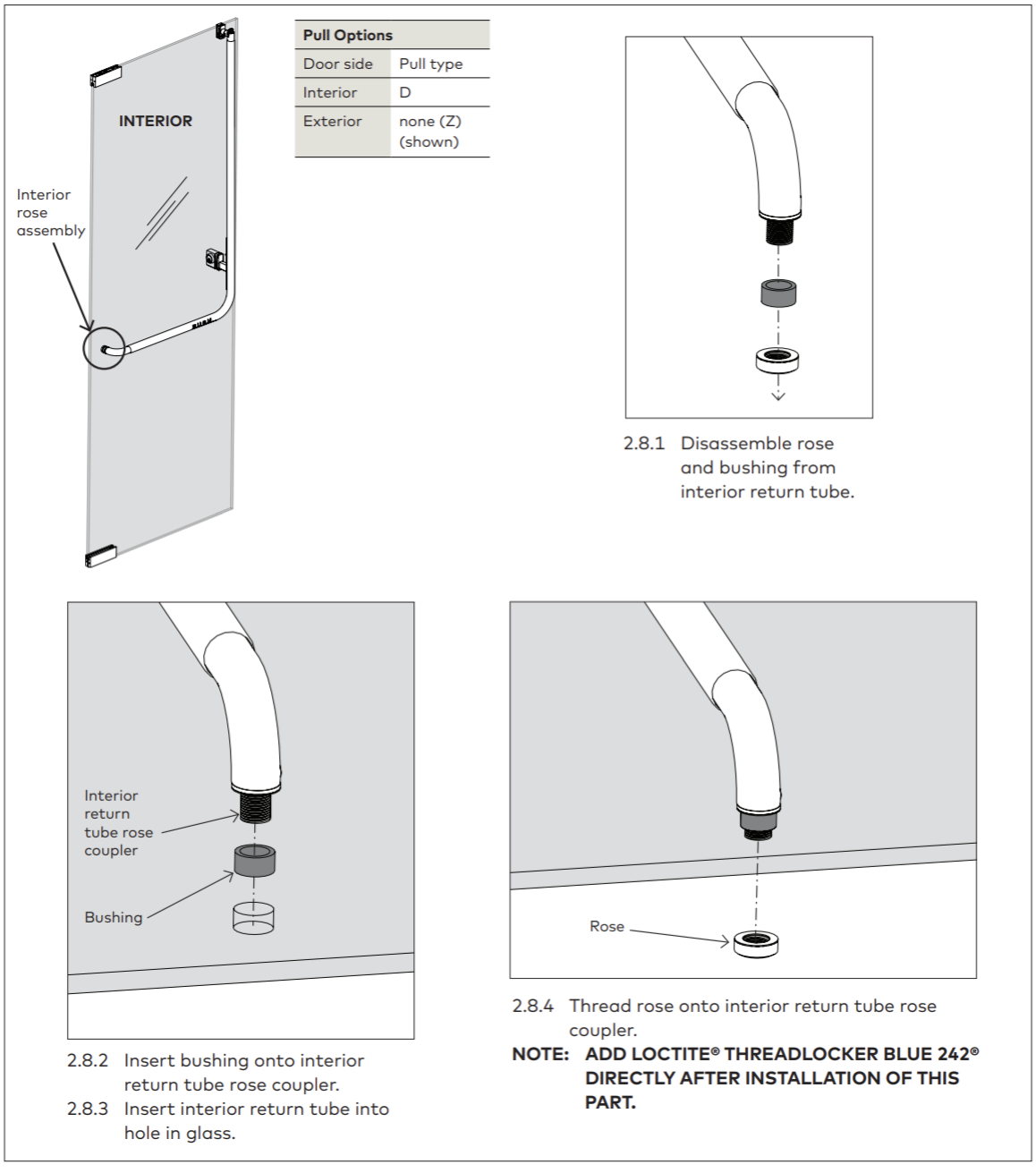

8. Mount interior pull components - return tube (single-sided)

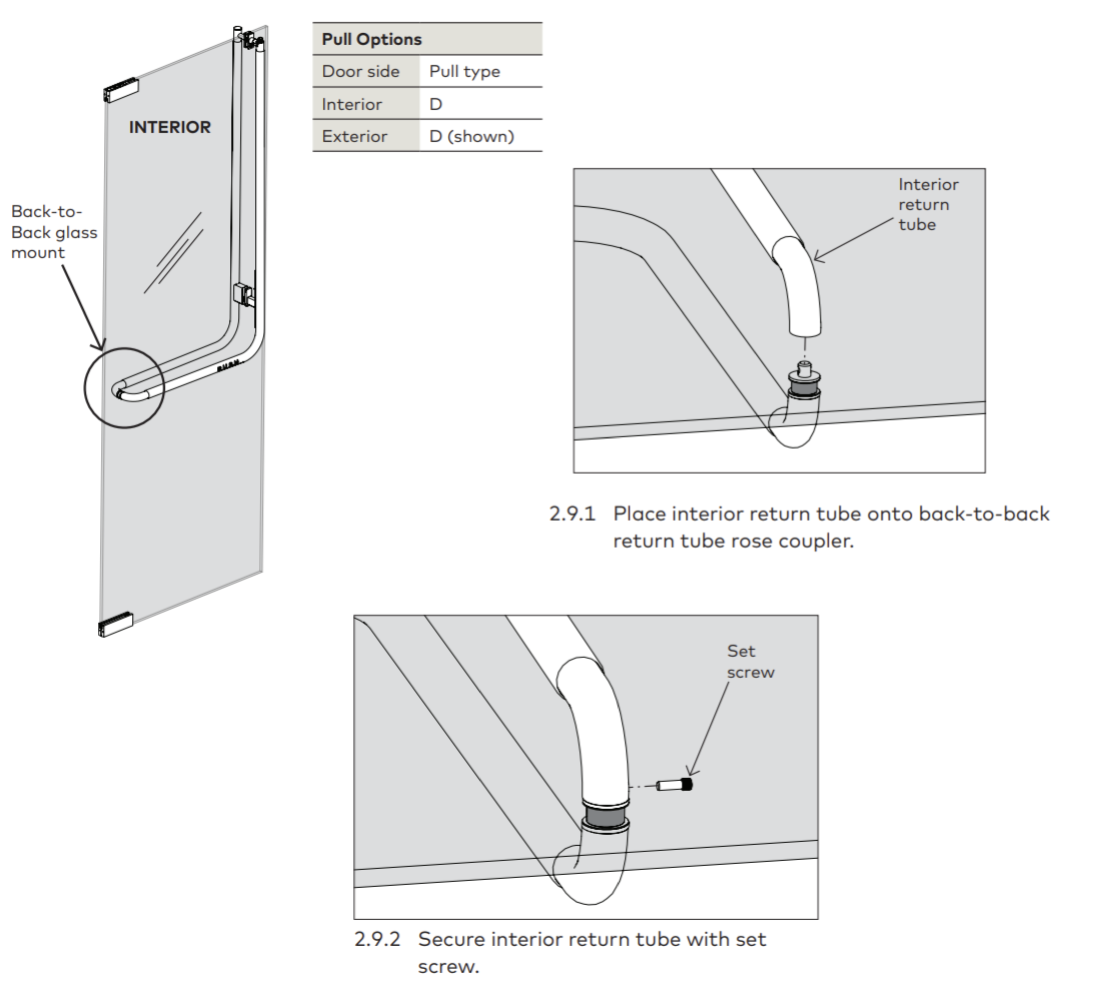

9. Mount interior pull components - return tube (back-to-back)
Adjustments

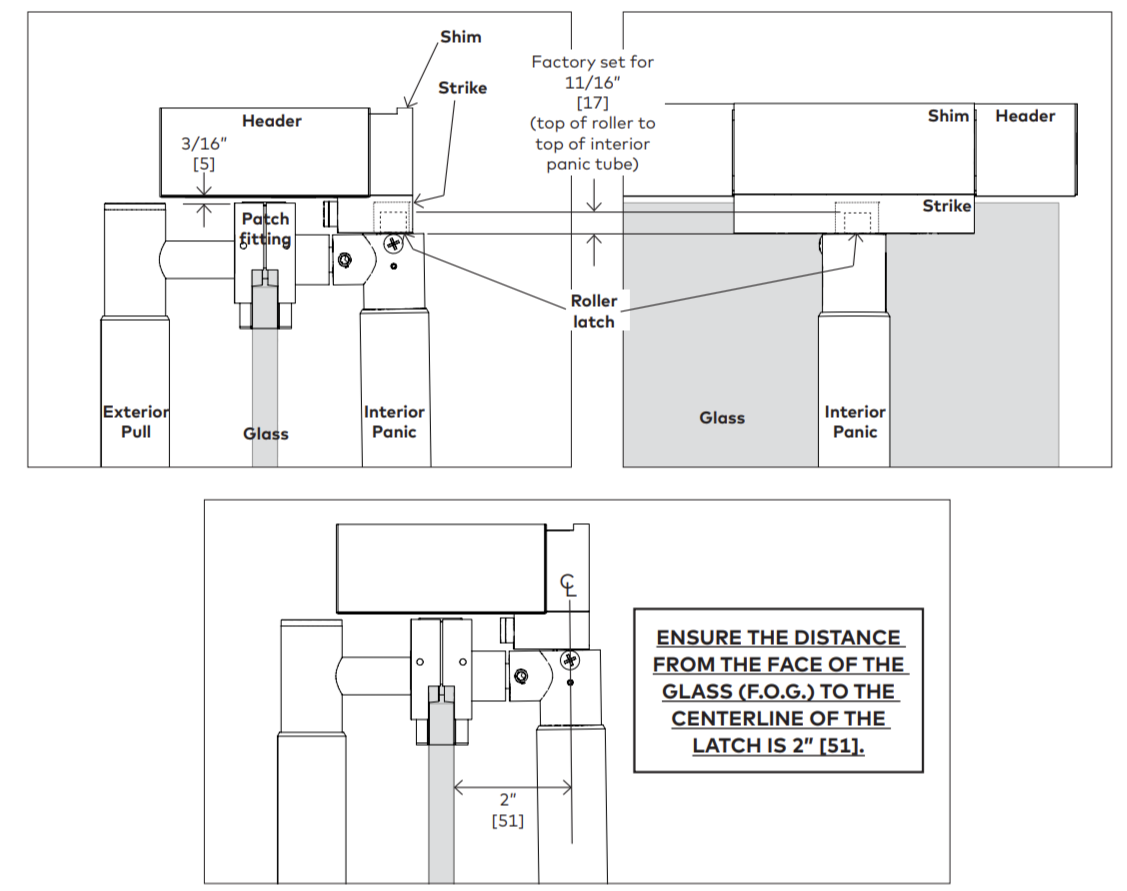

1. Clearances
1. Once the door is properly installed, ensure roller latch engages properly with strike.
2. See step 3.2 for tube height or length adjustment.
3. Centerline of roller at top of roller latch should engage strike:
• minimum of 5/8” [16]
• maximum of 3/4” [19] (measure from top of the handle tubing to the top of the bolt that retains
the roller.)

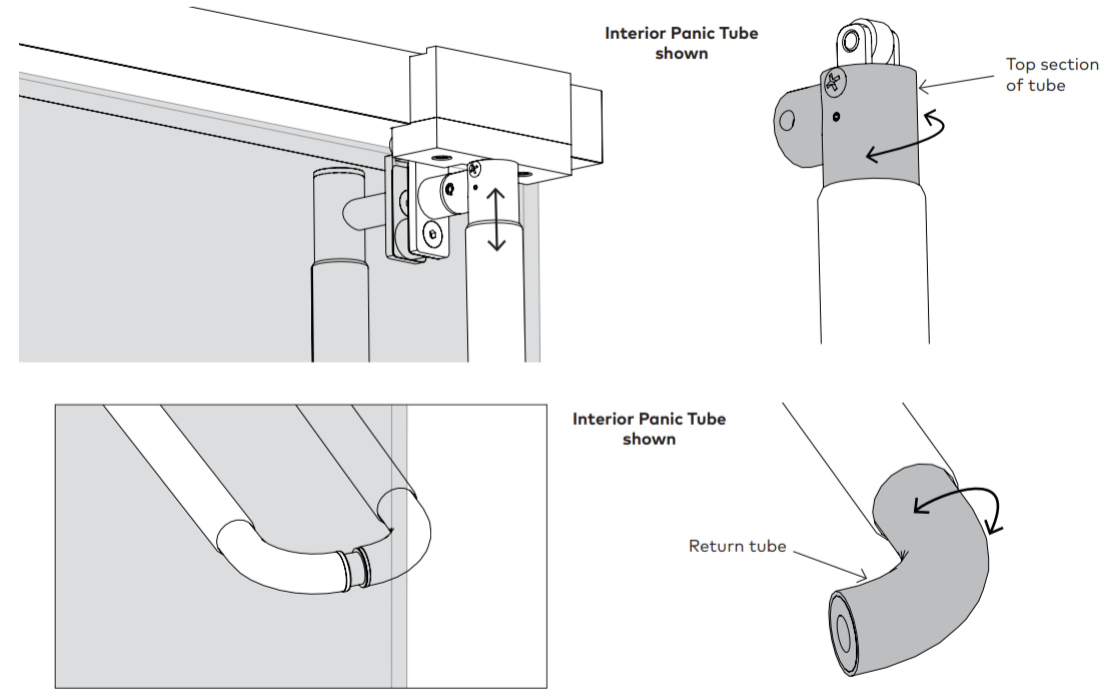

2. Final adjustments (tube height or length)
1. Ensure interior and exterior tubes are at the proper height and length.
2. To adjust height up or down:
• Twist top/bottom sections of tube clockwise or counter clockwise until desired height is met.
3. To adjust length of tube:
• Twist return clockwise or counter clockwise until desired length is met.

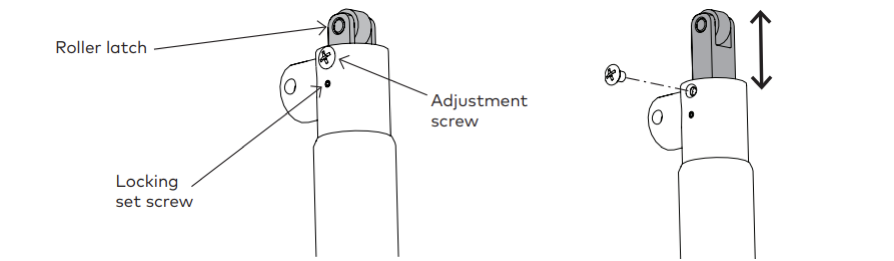

3. Adjust roller latch
1. Ensure roller latch is at the proper height.
2. To adjust height up or down:
• Remove adjustment screw
• Loosen locking set screw (DO NOT REMOVE)
• Slide roller latch up or down until proper height is met.
3. Set latch height:
• Reinsert adjustment screw
• Tighten locking set screw
4. Loctite part list
| GPII part | Referenced step |
| Actuator set screws * | Step 2.2 |
| Interior glass mounting plate set screw * | Step 2.7.2 |
| Interior return tube rose | Step 2.8.4 |
| Interior return tube set screw * | Step 2.9.2 |
| * To be completed after final adjustments | (Step 3.2) |
Function

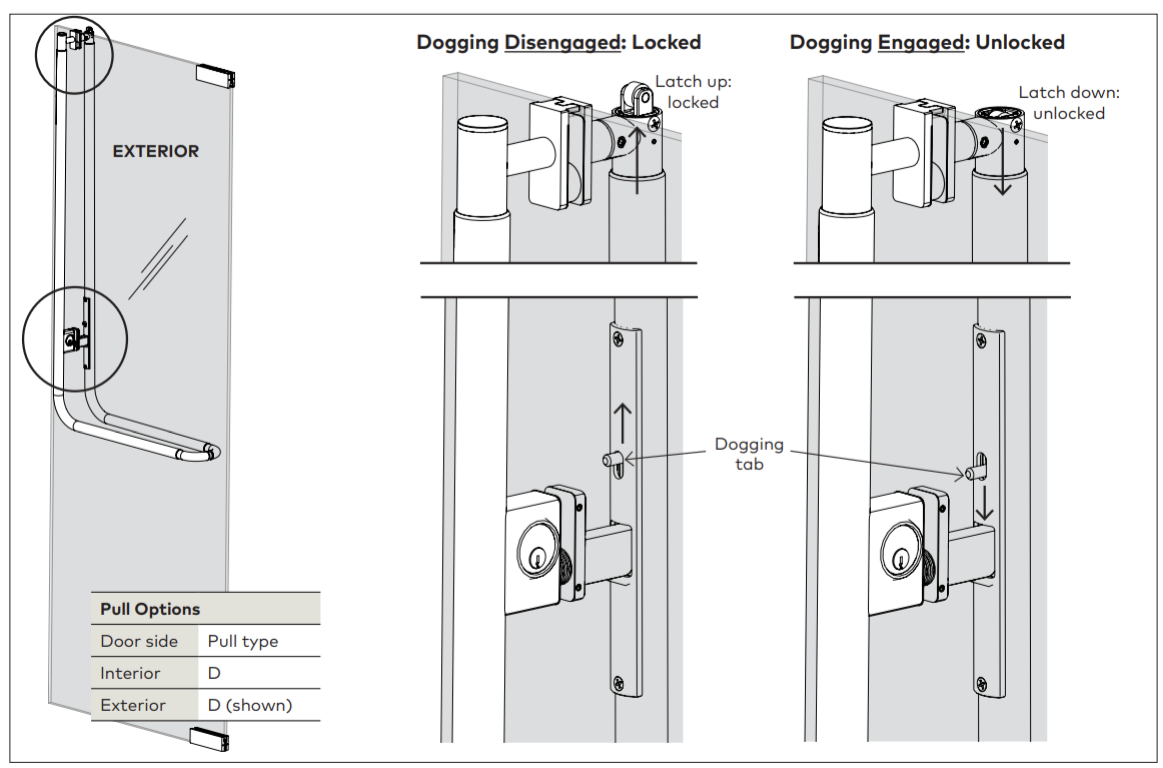

1. Locking the panic (dogging)
NOTE: The panic is always LOCKED unless the dogging feature is engaged on the interior of the door.
1. Dogging Disengaged: To keep door LOCKED from both exterior and interior sides - move dogging
tab UP.
2. Dogging Engaged: To keep door UNLOCKED from both exterior and interior side:
• press panic bar in and hold in place
• move dogging tab DOWN SIMULTANEOUSLY
