Installation instructions for 2-1/2”, 3-5/8”, 4”, 6”, and 10” DRS Rail Systems
Install rails onto glass panel
1
Lay glass flat on saw horses. Interior side facing upward.
2

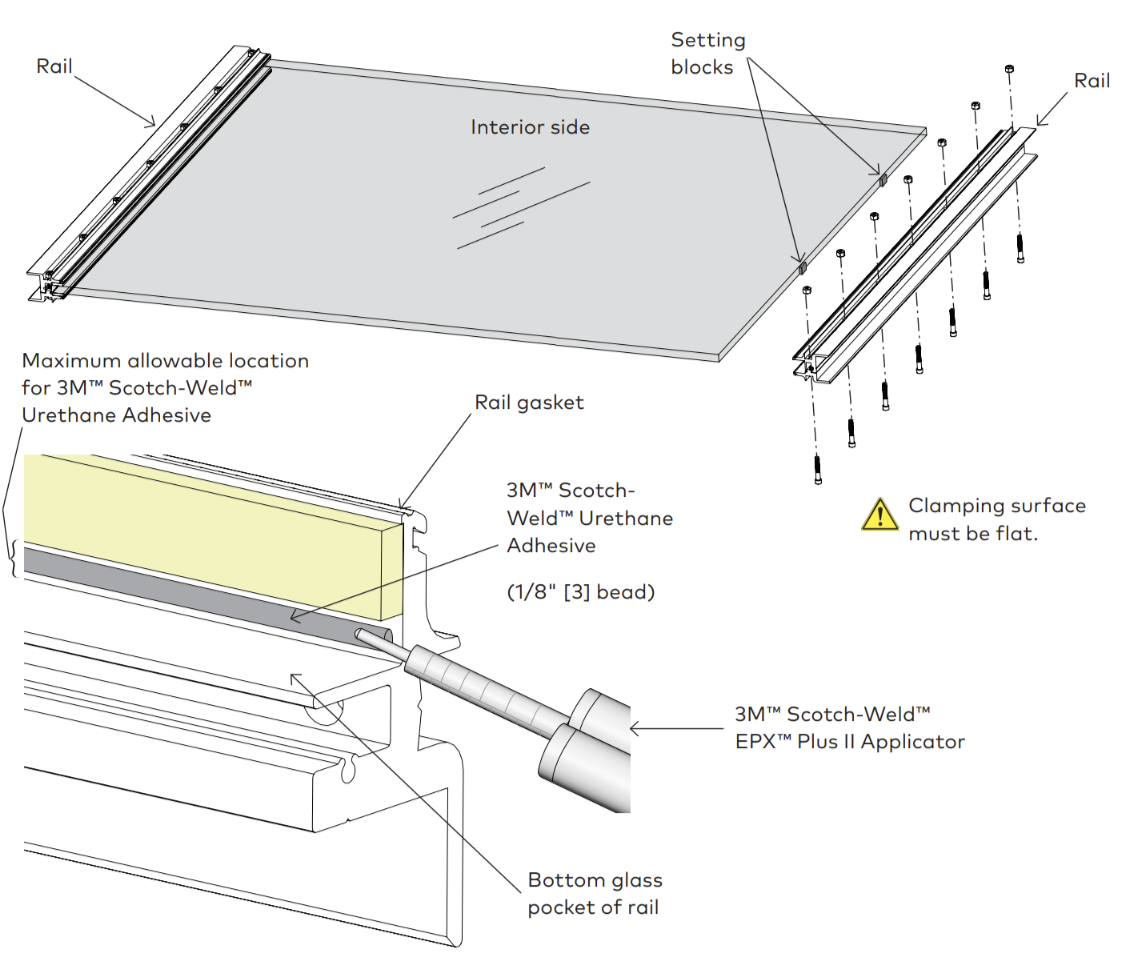

Tape proper height setting blocks to top and bottom of glass panel. Place setting blocks 2-1/2” [64mm] off each edge. (Two each for rails up to 48” [1219mm].)
Tempered monolithic glass: loosen bolts (but do not disassemble the rail), allowing both halves of rail to move freely.
Tempered laminate glass ONLY: Apply 1/8” [3] bead of 3M™ Scotch-Weld™ Urethane Adhesive along inside of each section of top rail. Be sure the adhesive does not touch bottom glass pocket of rail.
3
Slide rail onto glass until setting blocks are snug against rail.
4
Gently hand-tighten the bolts.
5
Firmly tighten all bolts to appropriately specified torque. Start at center bolt and work outward. Repeat tightening sequence.
Tempered monolithic: start at 10 ft-lbs (14Nm); work up to 15 ft-lbs (20Nm).
Tempered laminate glass: start at 4 ft-lbs [5.5Nm]; work up to 8 ft-lbs [11Nm] (clamping surface must be flat)
6
Follow step 2 through 5 for bottom rail.
7
Check total height and corner-to-corner for squareness, accounting for top and bottom cover thickness. Adjust rail accordingly.
Install glass door panels and rails into frame:For use with: RTS88 header and 8852 bottom pivot
Bottom Rail:
1

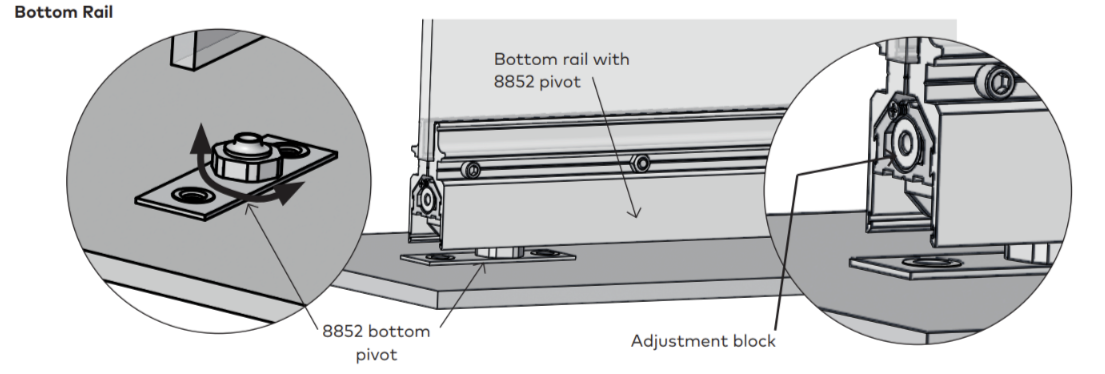

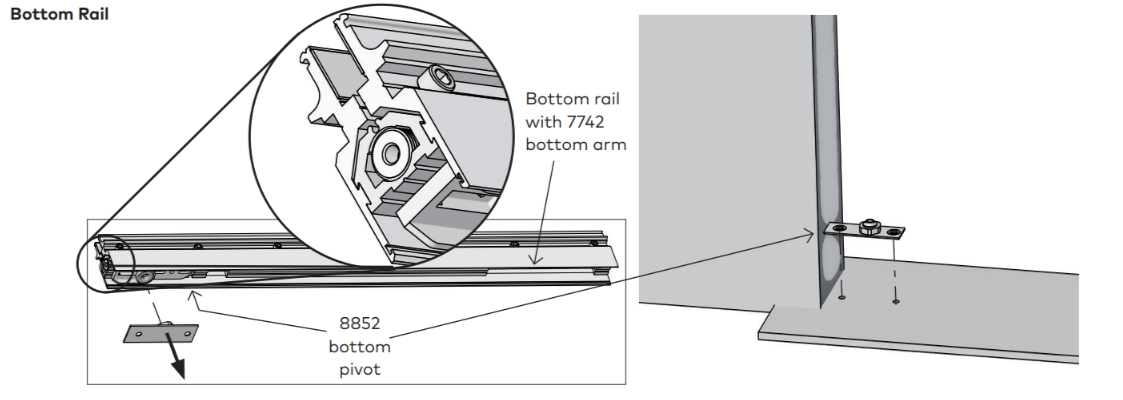

Disassemble bottom half of 8852 bottom pivot from rail.
2
Secure bottom half of 8852 pivot to floor mounting surface using proper fasteners.
3
Spin nut on 8852 pivot until it is as low as it will go.
Top Rail:
4
Loosen end of bracket of 8836 top arm.
5

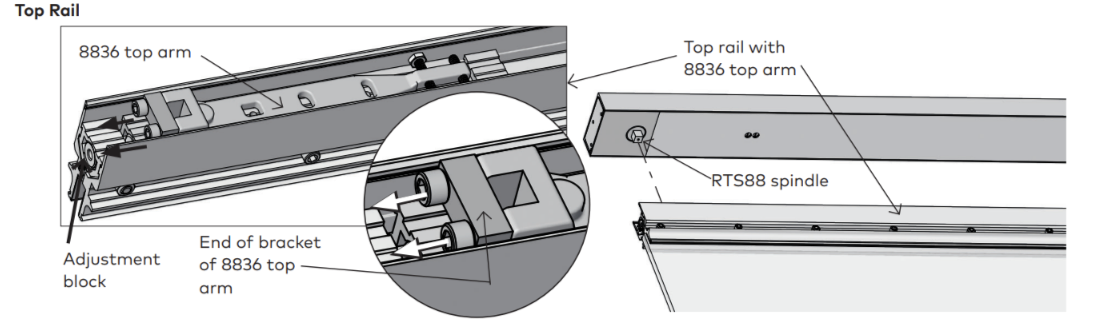

Install top rail (with 8836 top arm) onto RTS88 spindle.
6
Tighten end of bracket of 8836 top arm
Bottom Rail:
7
Slide bottom rail onto 8852 pivot in the floor.
8
Adjust door height if necessary
Adjustments:
9
Using a 3/16” hex key, adjust the pivot, arm, or insert vertically inside each rail via the adjustment block in rail.
Install glass door panels and rails into frame: For use with: PT21 (walking beam pivot) and BTS80 with 7422 bottom arm
NOTE: See PT21 instructions for product install. See BTS80 instructions for product install.
Bottom Rail:
1

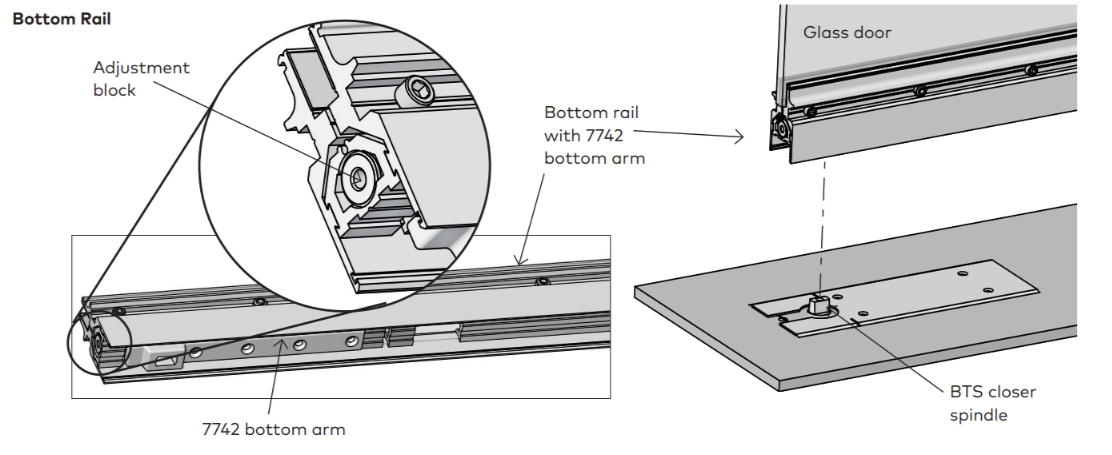

Set bottom rail (with 7422 bottom arm) onto the BTS80 spindle.
Top Rail:
2
Retract PT21 spindle all the way up via slotted screw.
3

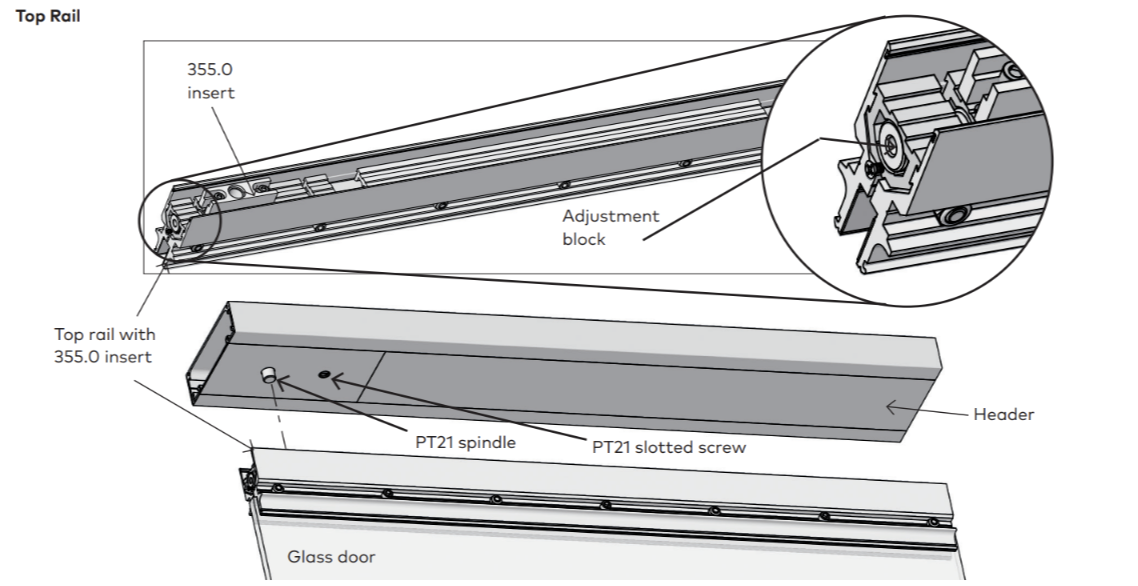

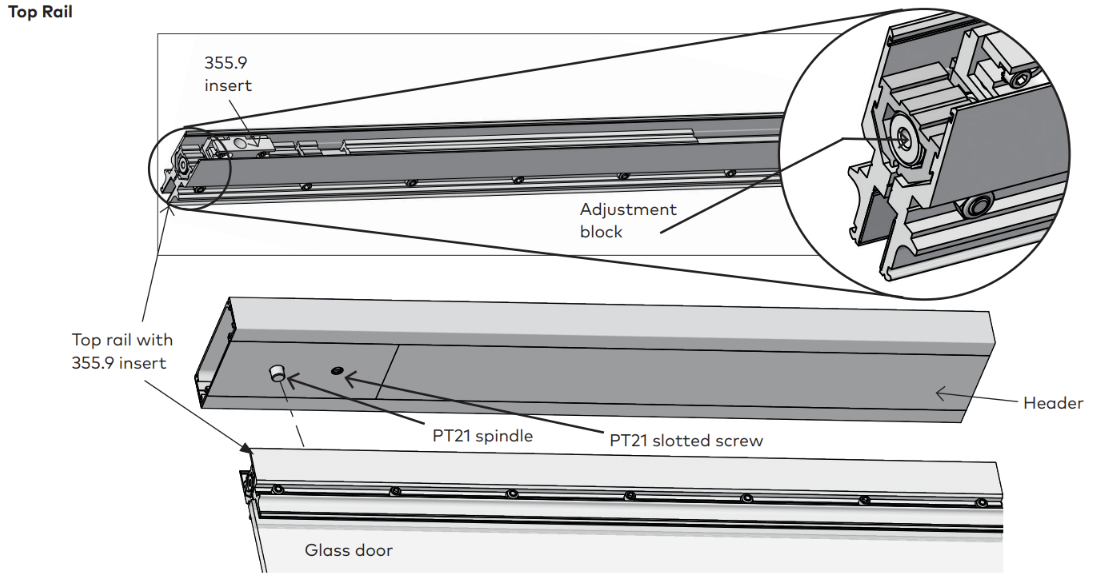

Align top rail (with 355.0 insert) with PT21 walking beam pivot spindle.
4
Extend PT21 spindle and align spindle with 355.0 insert hole
Adjustments:
5
Using a 3/16” hex key, adjust the pivot, arm, or insert vertically inside each rail via the adjustment block in rail.
Install glass door panels and rails into frame: For use with: PT21 (walking beam pivot) and BTS80 with 355.1 insert
NOTE: See PT21 instructions for product install. See BTS80 instructions for product install.
Bottom Rail:
1

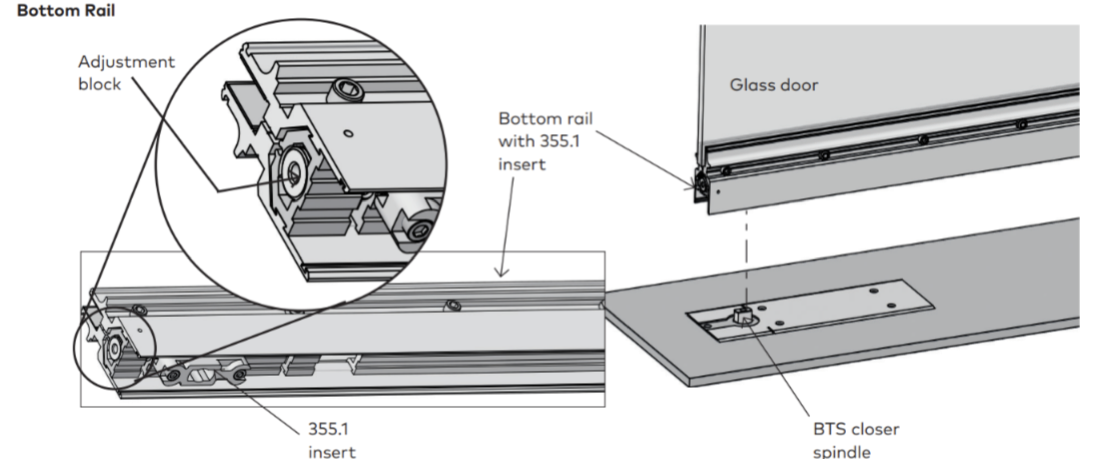

Set bottom rail (with 355.1 insert) onto the BTS80 spindle
Top Rail:
2
Retract PT21 spindle all the way up via slotted screw.
3
Align top rail (with 355.9 insert) with PT21 walking beam pivot spindle.
4
Extend PT21 spindle and align spindle with 355.9 insert hole
Adjustments:
5
Using a 3/16” hex key, adjust the pivot, arm, or insert vertically inside each rail via the adjustment block in rail.
Install rail covers and end caps
1

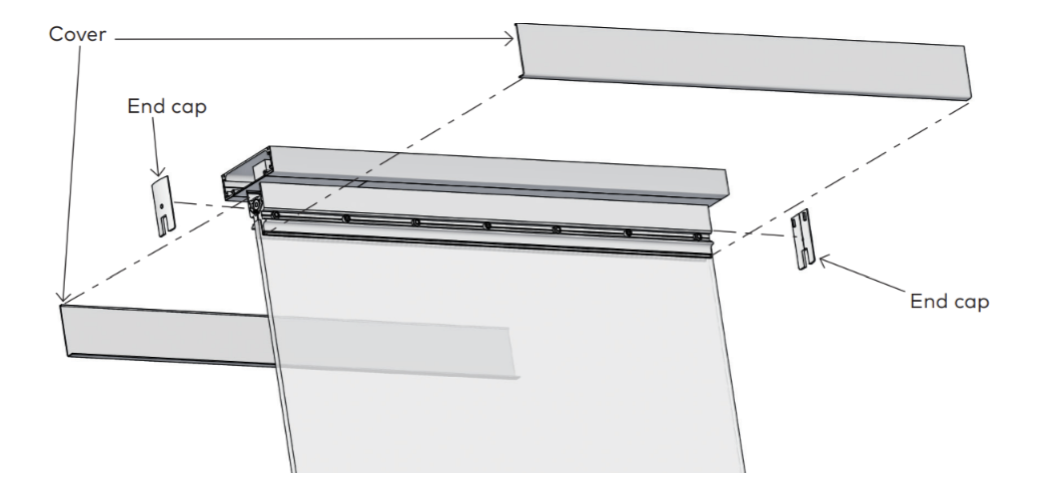

Snap covers onto top and bottoms rails using a rubber mallet.
2
Install end caps using included 6-32 x3/4” Type F screws.
