Surface mounting
Assembly

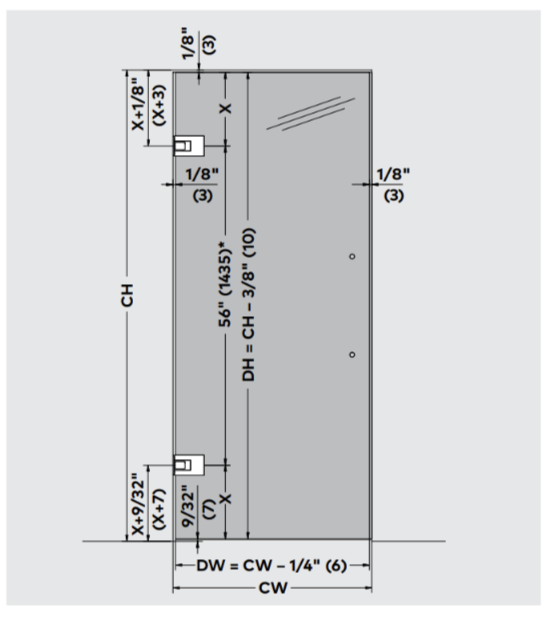

TENSOR Double-acting door fixed to wall/frame with surface mounting plate
Single leaf
Glass door height
DH = CH – 3/8" (10)
Glass door width
DW = CW – 1/4" (6)
Fittings for
3/8" (10) and 1/2" (12) glass
Door weight
max. 143 lb (65 kg)
Door width
max. 39-3/8" (1000)
CH = Clear opening height
CW = Clear opening width
* for glass height 71"–98" (1800 –2500) (min. 28" [700] panel width)
TENSOR Double-acting door fixed to wall/frame with surface mounting plate
Double leaf
Glass door height
DH = CH – 3/8" (10)
Glass door width
DW = (CW – 3/8" [10]) / 2
Fittings for
3/8" (10) and 1/2" (12) glass
Door weight
max. 143 lb (65 kg)
Door width
max. 39-3/8" (1000)
CH = Clear opening height
CW = Clear opening width
* for glass height 71"–98" (1800 –2500) (min. 28" [700] panel width)
Wall/frame mounting
TENSOR Double-acting hinges

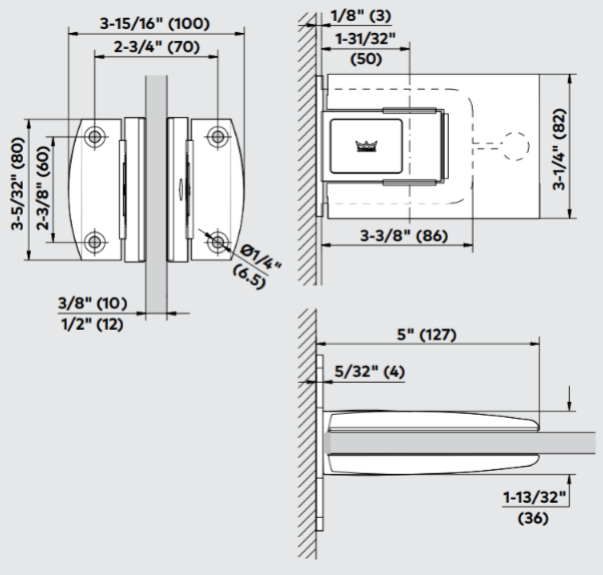

Pair of double-acting hinges incl. mounting plate, round; for installation onto wall or frame with
surface mounting plate
For 3/8" (10) and 1/2" (12) glass
Finishes
Anodized aluminum EV1 (114)
Similar to satin stainless steel anodized (113)
Glass preparation

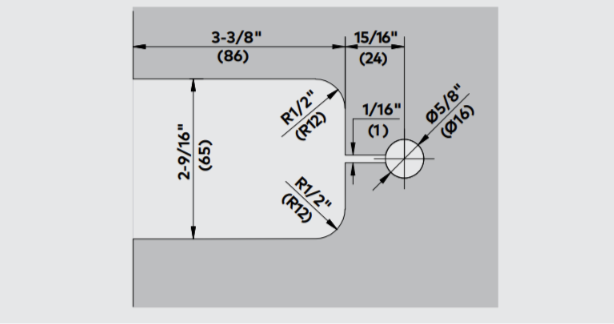

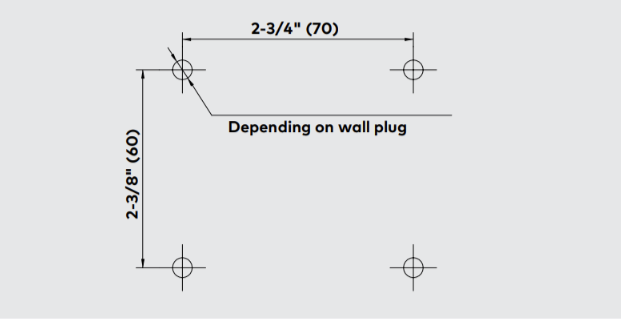

Drilling scheme
Please note:
• Substructure must be adequate for mounting the TENSOR hinges and tempered glass door.
• Excessive opening of the door must be prevented (max. 90°). Please use a door stop – see page 8.
Frame mounting
Product description
TENSOR Double-acting hinges
Pair of double-acting hinges incl. mounting plate; for installation into frame with embedded
mounting plate
For 3/8” (10) and 1/2” (12) glass
Finishes
Anodized aluminum EV1 (114)
Similar to satin stainless steel anodized (113)

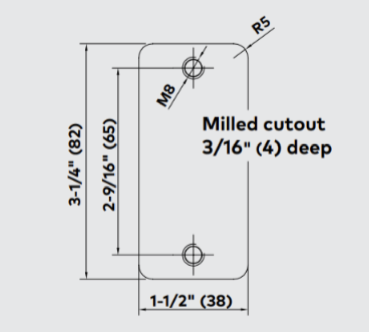

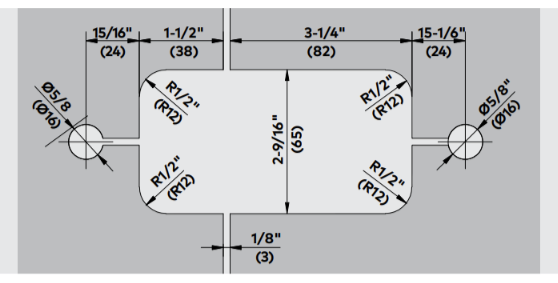

Glass preparation
Drilling scheme
Please note:
• Substructure must be adequate for mounting the TENSOR hinges and tempered glass door.
• Excessive opening of the door must be prevented(max. 90°). Please use a door stop
Glass-to-glass mounting

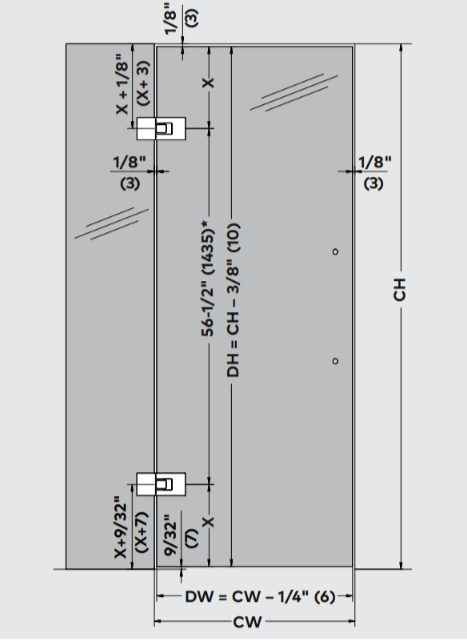

TENSOR Double-acting door fixed to glass sidelite Single leaf
Glass door height
DH = CH – 3/8” (10)
Glass door width
DW = CW – 1/4” (6)
Fittings for
3/8” (10) and 1/2” (12) glass
Door weight
max. 143 lb (65 kg)
Door width
max. 39-3/8” (1000)
Sidelite width
max. 59-1/16” (1500)
min. 12” (305)
CH = Clear opening height
CW = Clear opening width
* for glass height 71”–98” (1800 –2500) (min. 28” [700] panel width)

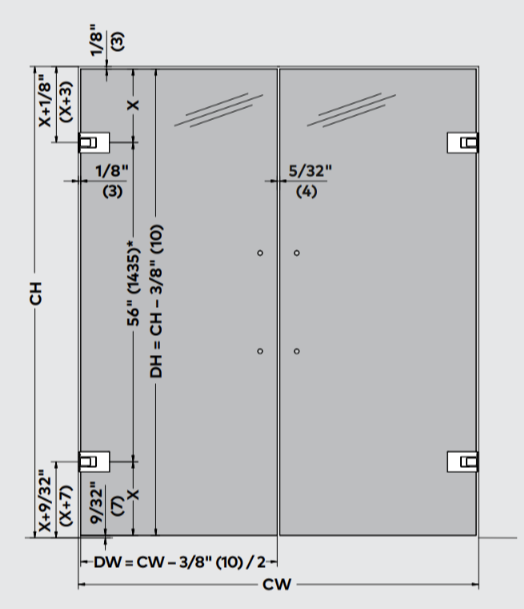

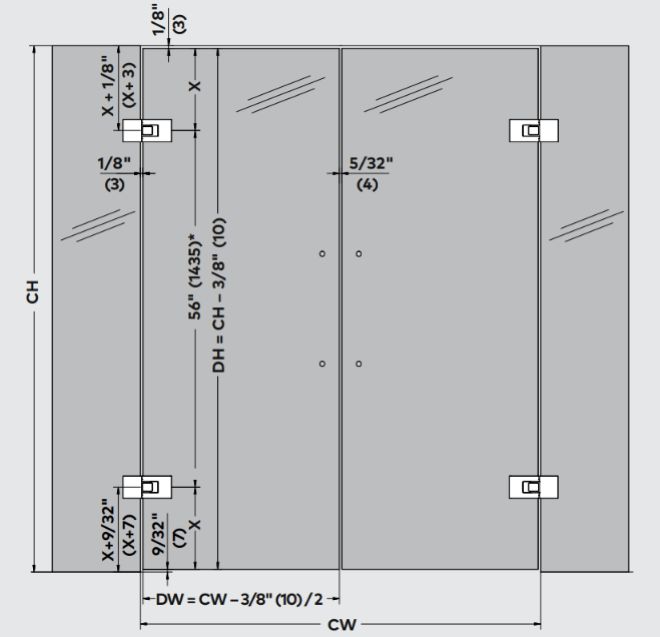

TENSOR Double-acting door fixed to glass sidelite Double leaf
Glass door height
DH = CH – 3/8” (10)
Glass door width
DW = (CW – 3/8” [10]) / 2
Fittings for
3/8” (10) and 1/2” (12) glass
Door weight
max. 143 lb (65 kg)
Door width
max. 39-3/8” (1000)
Sidelite width
max. 59-1/16” (1500)
min. 12” (305)
CH = Clear opening height
CW = Clear opening width
* for glass height 71”–98” (1800 –2500) (min. 28” [700] panel width)

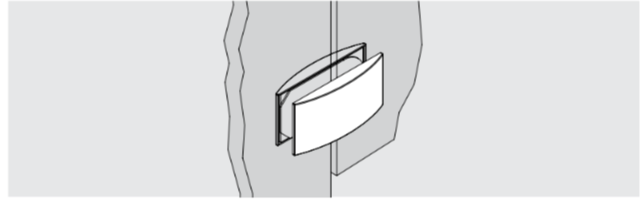

TENSOR Double-acting hinges

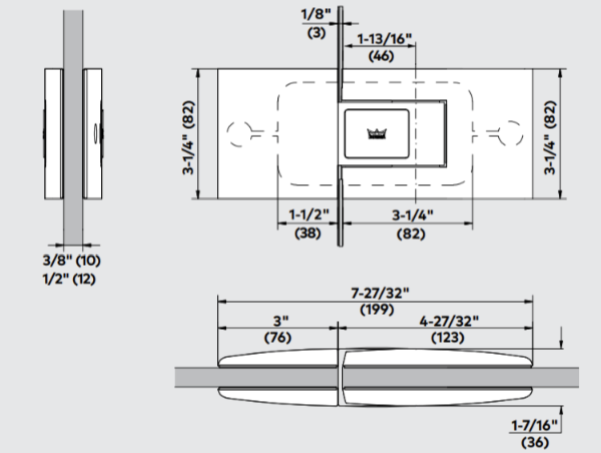

Pair of double-acting hinges for installation glass to glass
For 3/8” (10) and 1/2” (12) glass
Finishes
Anodized aluminum EV1 (114)
Similar to satin stainless steel anodized (113)

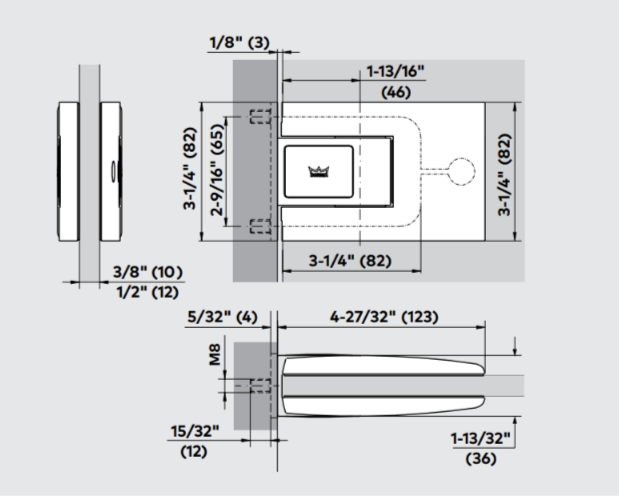

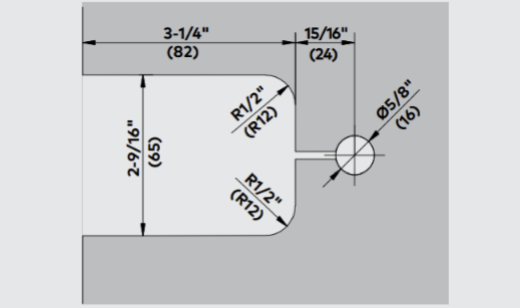

Glass preparation/drilling scheme

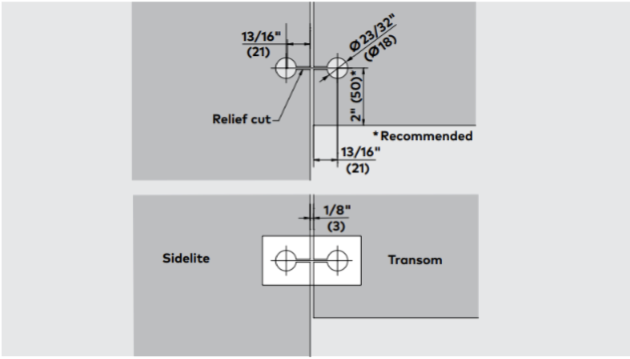

Transom to sidelite connector
Glass preparation/drilling scheme
Accessories

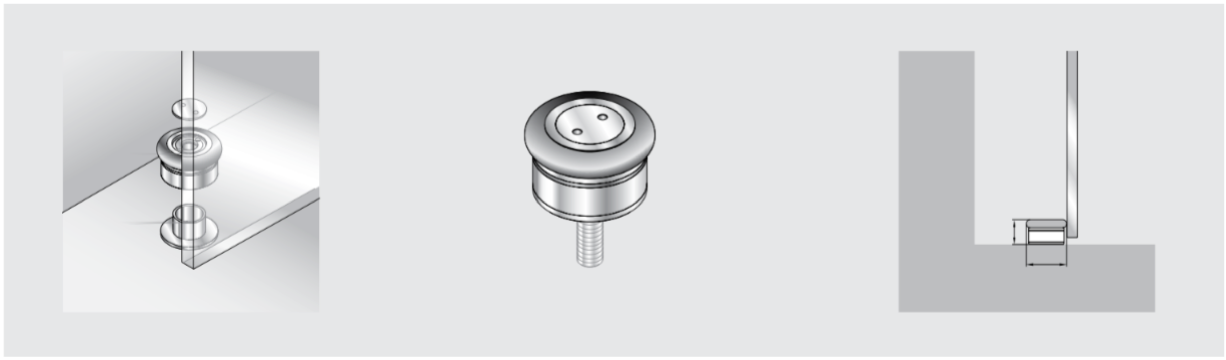

Stop for pivoting door
Floor mounting
