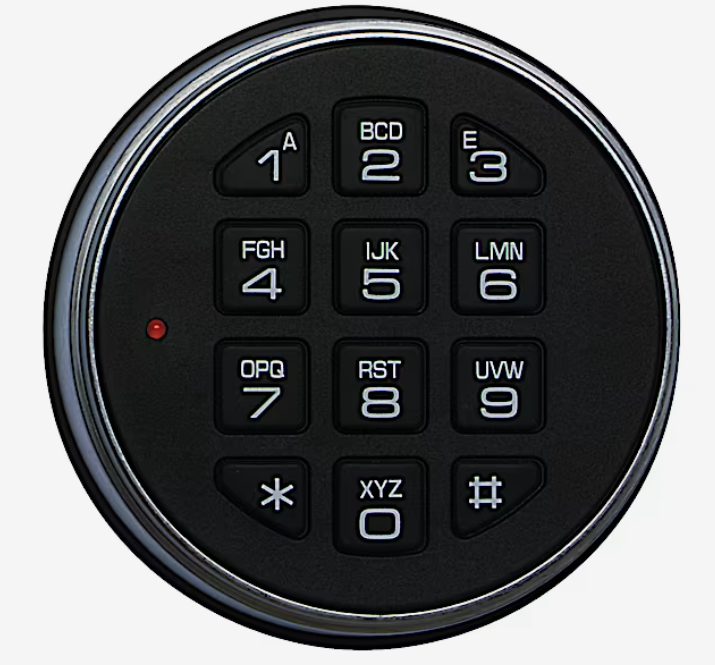

LA GARD ComboGard Pro 39E - Electronic Lock Templates, Installation and Operational Manuals
|
Installation manuals
| Document No. | Description | Rev. | Last Updated |
| 730.018 | LA GARD ComboGard Pro 39E Electronic Lock Software Installation Instructions | D | 05/18 |
| 762.128 | LA GARD Basic & Gard Series Installation Guide | G | 05/17 |
| 731.018 | LA GARD ComboGard Pro 39E Electronic Lock Setup Instructions | I | 05/18 |
| 735.028 | LA GARD ComboGard Pro 39E Electronic Combination Lock Keypad Only Setup Instructions | N | 05/18 |
Technical drawings CAD DXF
| Description | Last Updated |
| Battery Door Clearance DXF | 05/18 |
| Battery Door Replacement DXF | 05/18 |
| Blocking Pin/Hinge Placement DXF | 05/18 |
| Dead Bolt/Spring Bolt Assembly DXF | 05/18 |
| Swing Bolt Assembly DXF | 05/18 |
Operation Manuals
| Document No. | Description | Rev. | Last Updated |
| 871084-2 | Kaba AuditGard - Installation and Operating Instructions Alam Interface 871084-2 | NA | 11/08 |
| 786.0310 | Kaba ComboGard Pro - Operating Instructions AuditView | A | 06/10 |
| 743.049 | Kaba La Gard - Alarm/Battery Box Connections | B | 06/09 |
| 752.118 | Kaba ComboGard Pro - Operating Instructions Entry 3125 | A | 12/08 |
| 732.018 | LA GARD ComboGardPRO 39E Electronic Combination Locks Manager Instructions | P | 05/18 |
| 7031.0316 | LA GARD 5750 Operating Instructions | B | 05/18 |
| 7032.0316 | LA GARD 5750-K Operating Instructions | B | 05/17 |
Care and Maintenance
Important Information
Before using any cleaning or disinfecting product, please take the following steps:
• Only use products that are recommended for the intended surfaces - particularly on plastic surfaces, especially when using alcohol-based cleaning agents
• Always visit the website of the cleaning product manufacturer for a list of specific properties or instruction guidelines
• Pay special attention to plastic surfaces with a gloss finish as these may be more susceptible to scratching or tarnishing
• We strongly recommend first testing any new product on a small surface and waiting for a period of 4 hours to ensure there is no detrimental effect
Extreme Conditions
For locks with Ocean Front finish, we also recommend regular cleaning and waxing.
• On a weekly basis, remove salt from the lock using a damp cloth. This is for area subject to salt mist.
• We recommend cleaning, polishing and waxing locks using a suitable polisher agent every 6 months and this should be adjusted according to the severity of the environment.
Lock Finish warranty
The standard warranty on the dormakaba lock includes the finish, subject to the conditions mentioned above being met.
