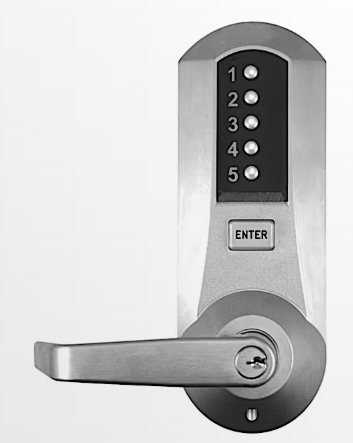

Simplex 5000 Series Templates and Instructions |
Specifications
For access to Specifications in Spanish: Simplex 5000 Specifications (Spanish)
Product Details
- Access Control: Mechanical pushbutton lock—eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress
- No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
- Number of Codes: Single access code—one easy-to-manage code for all users
- Programming: Lock is easily programmed via keypad without removing the lock from the door
- Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field
- Key Override: Key-in-lever cylinders, small format interchangeable cores, large format removable core
-
Operation Modes:
- Pushbutton Access
- Passage (select models)—allows access without using the lock access code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
- Exit Trim—may be "dogged" if Exit Device allows
- Lockout (select models)—disables the lock from the inside so that the code cannot be used to gain access. Access is permitted using the key override only when in this mode (5067 model only).
- Direct Drive Design: Clutch free design—minimizes friction and wear
- Economical: A cost effective access control solution
Technical Details
-
Backet:
- Cylindrical: 2 3/4" (70mm) backset, 2 3/8" (60mm) backet
- Exit Device: Varies by Exit Device
- Mortise: 2 3/4" (70mm) backset
-
Latch:
- Cylindrical: 1/2" (13mm) latch, 3/4" (19mm) latch (optional)
- Exit Device: Supplied with Exit Device
- Mortise: 3/4" (19mm) latch, 1" (25mm) deadbolt (optional)
-
Exit Device: Not supplied (see list below for Exit Device Compatibility—Simplex 5000 Exit Trim)
- Arrow S1250, Dorex 8500R/8500F, Sargent 888
- Arrow S3883F/S3800, Dorex 9500PR/9500FR, Von Duprin 22/22F
- Black & Decker (K-2) QED111/112, dormakaba 9300/9300F, Von Duprin 98/98F
-
Cal Royal 9800, Monarch 18R*, F18R*, Von Duprin 99/99F
- Note: *(requires special K-Hub Adapter)
- Cal Royal 220, Precision 21/FL21, Von Duprin XP98/99
- Corbin Russwin ED5200/5200A, Sargent 2828, Yale YME2100/2100
- Detex 1001 BPQ, Sargent 3828, Yale 7100
- Detex 10/F10 Series, Sargent 8810E/8800
- Universal Mounting: Simplex 5000 Exit Trim— Universal mounting plate (included) simplifies installation and eliminates any requirement to stock different locks/plates for various exit devices
- Minimum Stile Recommended: 5" (127mm)
-
Weight:
- Cylindrical: 9.25lbs (4.19kg)
- Exit Device: 8lbs (3.63kg)
- Mortise: 11lbs (4.98kg)
-
Universal Lever Key-in-Cylinders: Includes dormakaba1599 6-pin cylinder (prepped to dormakaba 90 or Schlage "C" Keyway, keyed different) and tailpieces for compatibility with:
- Abloy 5277, Corbin Russwin 2000-03, Marks
- Abloy 5477, dormakaba 1539, Medeco 20W200H1
- Arrow C100, dormakaba Gemini 4730, Sargent 10 Line
- ASSA 65611, dormakaba Peaks 1099 Schlage 23-001
- ASSA 65691, dormakaba 1599, Schlage Primus 20-760
- Australian: dormakaba expert 107K5, Boyd KC286
- European: Quattro S/Expert, AP2 (5 and 6-pin)
-
Key Override:
- Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
- Removable Cores: Large format—ASSA/Medeco/Yale/Abloy (5 or 6-pin), Corbin Russwin (6 or 7-pin), Schlage, and Sargent; core not included
- Construction: Extra heavy-duty solid cast housings; solid cast levers, ADA-compliant levers, and wear tested for extensive use on indoor and outdoor applications
- Numeric Keypad: Vandal resistant, metal pushbuttons
-
Locking Device Options:
- Cylindrical: Cylindrical latch with 3-hour UL/ULC fire rating for "A" label doors and installed with an existing fire-rated exit device (where applicable)
- Rim Exit Device: Compatible with most leading brands of Exit devices (Exit Device and mounting hardware not included). Universal mounting plate (included) simplifies installation and eliminates any requirement to stock different locks/plates for various Exit Devices
- American Standard Mortise: With 1 1/4" (32mm) face plate; with and without deadbolt
Installation
- Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through hole
-
Door Thickness:
- Cylindrical: 1 3/8" (35mm) to 2 1/4" (57mm). Pre-assembled to accommodate doors 1 5/8" (41mm) to 2" (51mm).
- Exit Trim and Mortise: 1 3/4" (44mm) to 2 1/4" (57mm). Pre-assembled to accommodate doors 1 3/4" (44mm) to 2 1/8" (54mm).
- Items Supplied Include: Lock assembly, installation manual, full scale template, and required hardware
Certification and Testing
- Durability: ANSI/BHMA Grade 1 Certified (A156.2, 156.13); D.O.D. Compliant 5220.22M for supplemental access control; weather resistant, wear tested for extensive use in indoor and outdoor applications
- Accessibility Standard: Americans with Disabilities Act (ADA); ADA-compliant levers
- Fire Rating: 3-hour UL/ULC fire rating for "A" label doors and installed with an existing fire-rated exit device (where applicable)
- Warranty: Three-year warranty
-
Finishes:
-
Standard:
- Satin Chrome 26D (626) housings and levers
- Black (676) housings with Satin Chrome (626) levers and accents
-
Optional:
- Bright Brass 03 (605) housings and levers
- Satin Brass 04 (606) housings and levers
- Bright Chrome 026 (625) housings and levers
-
Dark Bronze (744) housings and levers with brass accents
-
Standard:
Templates
| Template ID | Description | Last Updated |
| PKG3057 | Simplex/E-Plex 5x00 Series Exit Template | 01/2011 |
| PKG2845 | Simplex 5000 Cylindrical Template | 12/2015 |
| Tem1008 | Simplex 5000 Mortise | 04/2024 |
Instructions
| Document ID | Description | Last Updated |
| PKG2842 | Simplex 5000 Installation Instructions | 06/2009 |
| LIT1051 | Simplex 506x Mortise Installation Instructions | 10/2012 |
| PKG3054 | Simplex 5000 Exit Installation Instructions | 07/2007 |
| KAA1164 | Simplex 5000 How to reset a lost/unknown combination | 2/2014 |
How To Videos
How to Reset an Unknown Combination
How to Change the Combination (Exterior Combination Change)
How to Change the Combination (Interior Combination Change)
Care and Maintenance
Important Information
Before using any cleaning or disinfecting product, please take the following steps:
• Only use products that are recommended for the intended surfaces - particularly on plastic surfaces, especially when using alcohol-based cleaning agents
• Always visit the website of the cleaning product manufacturer for a list of specific properties or instruction guidelines
• Pay special attention to plastic surfaces with a gloss finish as these may be more susceptible to scratching or tarnishing
• We strongly recommend first testing any new product on a small surface and waiting for a period of 4 hours to ensure there is no detrimental effect
Extreme Conditions
For locks with Ocean Front finish, we also recommend regular cleaning and waxing.
• On a weekly basis, remove salt from the lock using a damp cloth. This is for area subject to salt mist.
• We recommend cleaning, polishing and waxing locks using a suitable polisher agent every 6 months and this should be adjusted according to the severity of the environment.
Lock Finish warranty
The standard warranty on the dormakaba lock includes the finish, subject to the conditions mentioned above being met.
