Specifications

Product Details

• Access Control: Mechanical pushbutton lock—eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provide interior and exterior access by combination
• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
• Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Handing: Factory-handed for left-hand doors; field reversible
• Operation Modes:
  • Pushbutton entry
  • Pushbutton egress
• Economical: A cost effective access control solution
• Optional Features:
  • Emergency Release Key: Can be used to override the combination. This feature allows you to start or maintain a master security system (with the same or a different key). The lock accepts removable cylinders (not supplied)
  • Unrestricted Access: Allows access without using the lock entry code or key, keeping the door active even when closed. This feature is configured internally with a special key or thumbturn (included on all passage feature models).

Technical Details

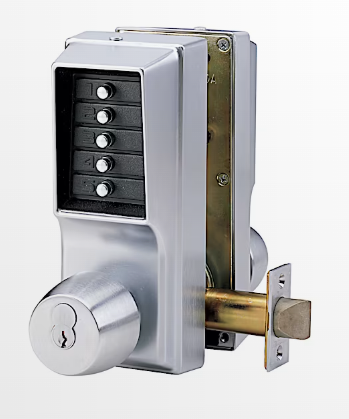

• Construction: Heavy-duty cylindrical lock with cast front and back housings; cast knobs
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Door Handing: Factory-handed for left-hand doors; easily field reversible
• Key Override (optional):
  • Interchangeable cores: Small format—Best and equivalent (6 or 7-pin length); core not included
  • Removable cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length); Corbin Russwin (6-pin length); Schlage, and Sargent; core not included
• Backset: 2 3/4" (70 mm)
• Latch: 1/2" (13 mm) throw latch, 3/4" (19 mm) throw latch (optional)
• Strike: Standard strike plate; ASA strike plate
• Door Preparation: ASA 161-door preparation with additional through bore holes
• Door Thickness: 1 3/4" (44 mm) to 2 1/4" (57 mm); modified lock for more than 2" (51 mm) thick door (up to 2 1/4") available (specify when ordering)
• Minimum Stile Recommended: 5" (127 mm)
• Weight: 10.25 lbs (4.6 kg)
• Items Supplied Include: Lock assembly, installation manual, full-scale template, combination change tool, and required installation hardware
• Finishes:
  • Standard:
    • Antique Brass 05 (609)
    • Satin Chrome 26D (626)
  • Optional:
    • Bright Chrome 026 (625)
    • Bright Brass 03 (605)

Certification and Testing

• Durability: Weather resistant
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Warranty: 1-year warranty

Care and Maintenance

Important Information

 Before using any cleaning or disinfecting product, please take the following steps:

• Only use products that are recommended for the intended surfaces - particularly on plastic surfaces, especially when using alcohol-based cleaning agents

• Always visit the website of the cleaning product manufacturer for a list of specific properties or instruction guidelines

• Pay special attention to plastic surfaces with a gloss finish as these may be more susceptible to scratching or tarnishing

• We strongly recommend first testing any new product on a small surface and waiting for a period of 4 hours to ensure there is no detrimental effect

Extreme Conditions

For locks with Ocean Front finish, we also recommend regular cleaning and waxing.

• On a weekly basis, remove salt from the lock using a damp cloth. This is for area subject to salt mist.

• We recommend cleaning, polishing and waxing locks using a suitable polisher agent every 6 months and this should be adjusted according to the severity of the environment.

Lock Finish warranty

The standard warranty on the dormakaba lock includes the finish, subject to the conditions mentioned above being met.
