Product Details

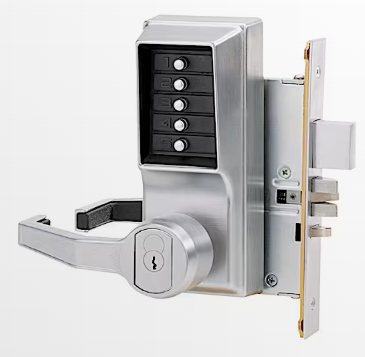

• Access Control: Mechanical pushbutton lock—eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress.
• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
• Locking Device:
  • Mortise with 1" (25mm) deadbolt, 3/4" (19mm) two-piece anti-friction latch
  • Mortise with 3/4" (19mm) two-piece anti-friction latch
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Handing: Factory-handed; not field reversible
• Operation Mode:
  • Pushbutton Access
  • Passage (select models)—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
  • Deadbolt (select models)—added security of 1" deadbolt. Access permitted by combination or key override.
  • Lockout (all models)—disables the lock from the inside so that the entry codes cannot be used to gain access. Access is permitted using key override.
• Economical: A cost effective access control solution.

Technical Details

• Construction: Cast front housing; unified trim plate; fixed ADA-compliant levers
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Backset: 2 3/4" (70 mm)
• Latch: 3/4" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
• Minimum Stile Recommended: 5" (127 mm)
• Strike: 4 7/8" (124 mm) L x 1 1/4" (32 mm) W x 1/4" (6 mm) D Deadbolt/Latch mortise strike plate
• Key Override:
  • Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
  • Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
• Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation
• Door Thickness: 1 3/4" (44 mm) to 2 1/4" (57 mm)
• Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
• Durability: Weather resistant
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Warranty: 3-year warranty
• Finishes:
  • Standard:
    • Antique Brass 05 (609)
    • Satin Chrome 26D (626)
  • Optional:
    • Bright Chrome 026 (625)
    • Bright Brass 03 (605)

Care and Maintenance

Important Information

 Before using any cleaning or disinfecting product, please take the following steps:

• Only use products that are recommended for the intended surfaces - particularly on plastic surfaces, especially when using alcohol-based cleaning agents

• Always visit the website of the cleaning product manufacturer for a list of specific properties or instruction guidelines

• Pay special attention to plastic surfaces with a gloss finish as these may be more susceptible to scratching or tarnishing

• We strongly recommend first testing any new product on a small surface and waiting for a period of 4 hours to ensure there is no detrimental effect

Extreme Conditions

For locks with Ocean Front finish, we also recommend regular cleaning and waxing.

• On a weekly basis, remove salt from the lock using a damp cloth. This is for area subject to salt mist.

• We recommend cleaning, polishing and waxing locks using a suitable polisher agent every 6 months and this should be adjusted according to the severity of the environment.

Lock Finish warranty

The standard warranty on the dormakaba lock includes the finish, subject to the conditions mentioned above being met.
