YD30D Double Sideload Lock Surface Mounting Installation

Surface Mounting Installation - Solid Wood

1. Install mounting screws
   Install two 10Gx1” self-tapping screws (included with housing) in the mounting surface, as per the product dimension drawings, they should be 220mm apart, 20mm from the surface edge.
2. Drill wiring access hole
   An 8mm hole should be drilled through the housing wall at the position chosen by the installer for the wiring to enter. The wiring can be guided to the housing through surface-mount conduit or through a hole in the mounting surface material. Push a rubber grommet (included with housing) over the drilled hole to protect the wires from any sharp edges.

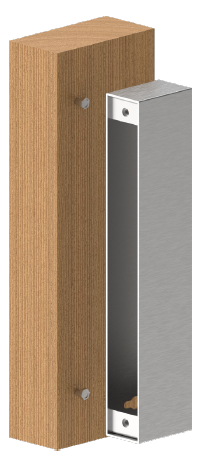

3. Mount the housing
   Position the keyhole cutouts of the housing over the screw heads and slide into position flush with the surface edge and then tighten the screws in place to secure the housing.

4. Route and connect wiring
   Feed the wires through the 8mm hole in the housing and a connection can be made to the supplied wire loom, which in turn plugs into the lock.

   Refer to the Wiring section of this document for detailed instructions on wiring.

5. Set operating mode
   Ensure the operating mode switch is positioned to the required state, Fail Safe or Fail Secure.

   Refer to the Operating Mode section of this document for detailed instructions on wiring.

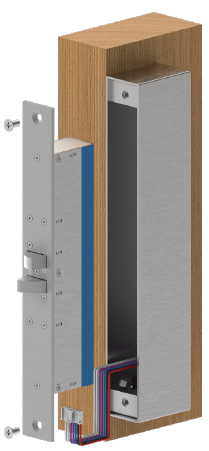

6. Install the lock body
   The lock can be placed into the housing, ensuring that the wiring integrity is maintained, and then secured in place with M5 machine screws (included with housing). Please ensure the lock is in the correct orientation to pull the door into the door jamb.

Surface Mounting Installation - Glass

1. Fitting the housing
   Clean the glass surface with isopropyl alcohol and peel the protective layer from the double-sided tape of the housing. Position the housing flush with the edge of the glass and press down to adhere tape to surface.
2. Fitting the dress plate
   Clean the glass surface with isopropyl alcohol and peel the protective layer from the double-sided tape of the dress plate. Position the dress plate flush with the edge of the glass and centered on the housing location and press down to adhere tape to surface.

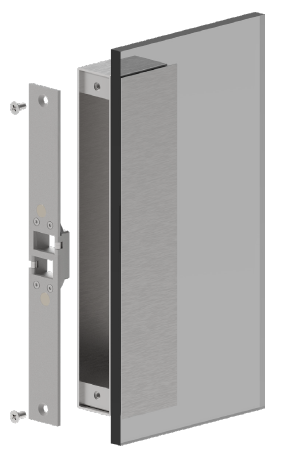

3. Fitting the strike plate
   The strike is then placed into the housing and then secured in place with M5 machine screws (included with housing). Ensure the strike is oriented so that the bolt hole aligns with the lock bolt.
