8310
For single outswinging interior or perimeter doors
10-1/2"W x 2-7/8"H x 1-5/8"D (268mm x 73mm x 41mm) – Includes 1/4" (6mm) mounting bracket
Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D (190mm x 61mm x 16mm)

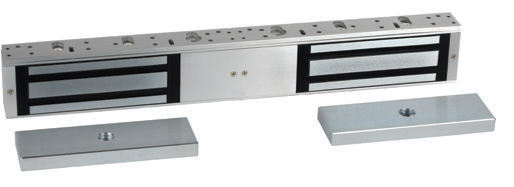

8320
For double outswinging interior or perimeter doors
21-1/8"W x 2-7/8"H x 1-5/8"D (536mm x 73mm x 41mm) – Includes 1/4" (6mm) mounting bracket
Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D (190mm x 61mm x 16mm) each
| Document ID | Description | Format |
Release Date |
| IS8310-SERIES_R1023 | 8310/8320 MultiMag Installation Instructions | 10/23 |
|
|
|
||
| T8310_R1123 | 8310 MultiMag Template | 11/23 |
|
| T8320_R1123 | 8320 MultiMag Template | 11/23 |
|
| T83138_R0719 | 8310 MultiMag Template with 3/8" thick armature plate | 7/19 |
|
| T8310CMB_R0921 | 8310 MultiMag Template with conduit bracket accessory | 9/21 |
|
| TTJ8310-3_R1219 | 8310 MultiMag Template with top jamb bracket accessory | 12/19 |
|
| ISAH10-20_R1119 | 8310/8320 MultiMag armature plate holder accessory 13/32” (10mm) thickness | 11/19 |
|
| ISAH1525_R1219 | 8310/8320 MultiMag armature plate holder accessory 3/8” (9.5mm) thickness | 11/19 |
|
| IS8310-SERIES_R1023 | Glass Door Bracket Installation Instructions | 5/24 |
