How do I configure my lock system to communicate with the Apexx Series Software (Connecting a Keypad via USB)?

1. From the Apexx keypad’s main menu, use the directional arrows to select the Advanced Menu icon , then press the Enter key .

2. Enter an authorized User ID, then press the Enter key .

3. Enter the corresponding user combination, then press the Enter key .

4. From the Advanced Menu, select the PC Connect icon, then press the Enter key .

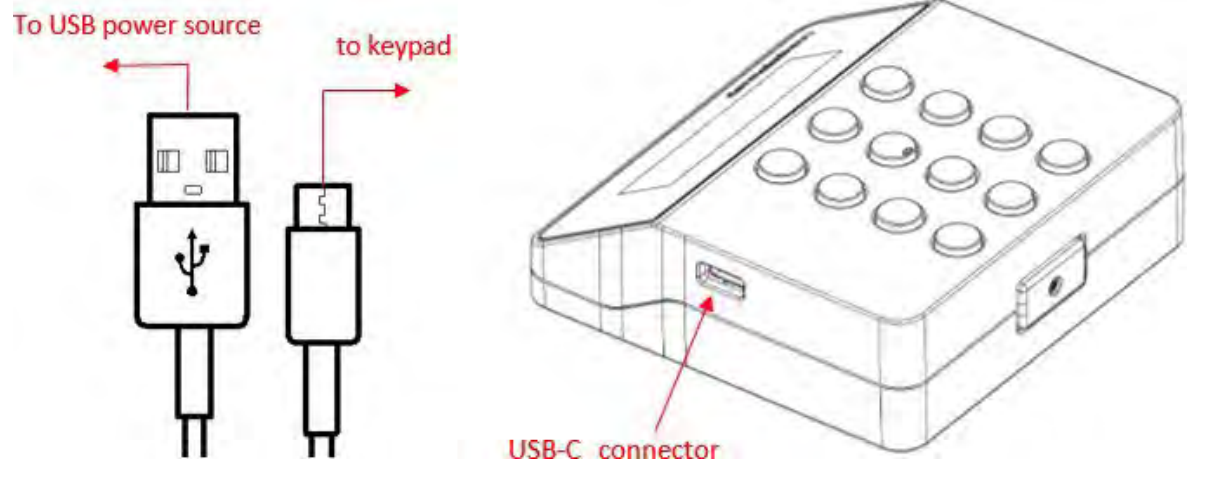

5. Connect the USB end of a USB-to-USB-C cable to your computer’s USB port, then connect the USB-C end of the cable to the USB-C port located on the side of the keypad.

6. When “Activate USB?” appears on the screen, select Yes by pressing the Enter key .

Note:
The USB connection to the PC is time-limited. After a period of inactivity, the connection will time out and “USB Timeout” will appear on the keypad display. To reestablish the connection, refresh the USB connection using the keypad by pressing the Enter key.
